Monitoring diagnostic device TSS-1000

onlinenetwork access

Features
KNTECH Telephone Management System is designed for control office to monitor Emergency Call Points in real time to ensure all phone stations are in good working status and to allow the control office to know immediately if a telephone is faulty and dispatch repair personnel.

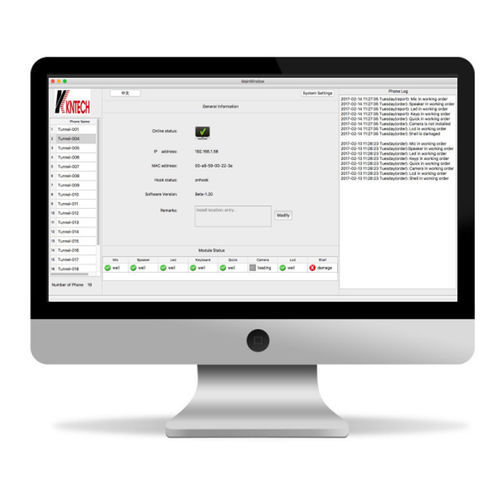

TSS-1000 runs on a Microsoft Windows PC and consists of one Windows software package plus the Emergency Call Point KNSP-19. All Emergency Call Point devices include monitoring and self-diagnostic functionality, including automatic self-test of microphone and loudspeaker with configurable schedules.
At least every 24 hours, all Emergency Call Points send their health/fault status to the control room TSS-1000 to display the status. This data is available to relevant subscribers for maintenance purposes. Symbols, icons and color codes are provided to identify monitored object status for easy operation.
The system is highly reliable, simple to install and operate; just run the TSS-1000 on your computer. Phone calls have higher priority while self-checking tasks are performed.
Remote testing and programmable details

• Self monitoring and diagnostics
• The telephone reports to the TSS-1000 in real time when the following occur:

• a. Keypad or emergency call button becomes stuck
• b. Handset microphone or receiver broken, or handset cord broken
• c. Ring indicator LED failure
• d. Buzzer failure
• e. Telephone box opened

Specification
Model: KNSP-19 Telephone with Diagnostic System
Construction: Robust aluminium alloy die-cast body
Dimensions (W*H*D): 320*205*120mm
Weight: 5.7kg
Operating Temperature: -25°F to +158°F / -40°C to +70°C
Relative Humidity: Up to 95% non-condensing
Protection: IP66, vandal-resistant and water-resistant design
Communication: Full duplex 2-way handset communication
Call Control Signaling: SIP Info (DTMF), RFC 2833 (DTMF)
Audio Codes: G.711, G.722, G.729
Power: Power over Ethernet, IEEE802.3af, Class 0; Local power 12V DC; Idle 2W, Max 10W
Auxiliary Contacts: 1 Aux Output, dry contact
Contact Ratings: Load: Resistive load; Rated load: 0.3 A at 125 VAC; 1 A at 30 VDC; Rated carry current: 1 A; Max. switching voltage: 125 VAC, 60 VDC; Max. switching current: 1 A
Network: 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
LAN Protocols: Power over Ethernet (PoE, 802.3af), WLAN (IEEE 802.3af), Network Access Control (IEEE 802.1x), STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004)
Programming: Non-volatile flash memory programming and configuration through Web GUI
Management and Operation: DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
Echo cancellation code: G.167 / G.168
Keypad: 0~9 free dial, last number redial, speed dial 1 and speed dial 2

System
The system includes the KNSP-19 telephone unit and supports PoE switches and centralized monitoring through the TSS-1000 Windows application.

Application
Designed for monitoring and managing emergency call points and roadside/highway/emergency telephone installations where centralized health/fault monitoring and automated self-testing are required.

Caractéristiques / Spécifications techniques

• Product name: Telephone Self-diagnostic System (TSS-1000)
• Included device: KNSP-19 Telephone with Diagnostic System
• Housing: Robust aluminium alloy die-cast
• Dimensions: 320 x 205 x 120 mm
• Weight: 5.7 kg
• Operating temperature: -40°C to +70°C (-25°F to +158°F)
• Relative humidity: up to 95% non-condensing
• Ingress protection: IP66, vandal- and water-resistant
• Communication: Full duplex handset; SIP Info and RFC2833 signaling; audio codecs G.711/G.722/G.729
• Power options: PoE (IEEE802.3af) or 12 V DC (Idle 2W, Max 10W)
• Auxiliary output: 1 dry contact aux output (rated loads as specified)
• Network: 10/100 BaseTX Ethernet, RJ45 (Cat5e+)
• Protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
• Management: Web GUI programming, remote upgrades, centralized monitoring
• Echo cancellation: G.167 / G.168
• Keypad features: numeric dialing, last number redial, 2 speed dials
