Remote management system NMSX1

Product overview

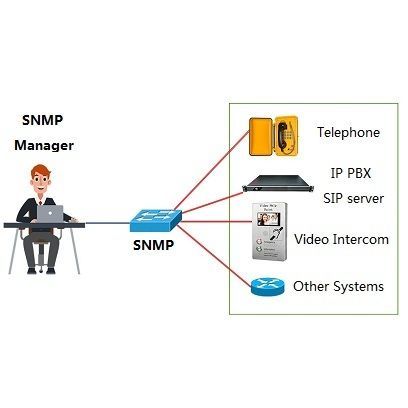

The NMS server software is based on the BS structure. The installation and operation environment is a Linux server. It is accessed through a web browser (WEB-GUI). The system performs network management on all devices in the system based on the SNMP protocol. Management objects include IP PBX, Recorder, office telephone, subway station telephone, tunnel telephone and all telephones registered to the system.

Key functions

• Map navigation to quickly locate the location of each phone terminal.
• Real-time view of the health status of each managed object.
• Immediate reporting of any alarms in terminals, IP PBX or recorder.

Software and licensing
Software Model number: S- NMS-X1-0.0.4-13
Description: Network Management System software
License SKU: KNNMS-X1-SNMP-0.0.4-13 (KNNMS-X1 Network Management system license)
Licence SKU for management authority 28 account number
For dispatcher Agent: KNNMS-X1-SNMP-0.0.4-13-AG28
For management Admin: KNNMS-X1-SNMP-0.0.4-13-AD28

Server hardware
Hardware SKU: KNSERBER-HW1

Interfaces

• Trunking gateway: interface to trunking radio system.
• VoIP gateway: interface to other telephone systems.
• SIP protocol: interface to PA systems.
• SIP protocol: interface to SCADA systems.

Applications
The SNMP unified network management system is mainly used in large telephone dispatching systems. Typical deployments include subways, stations and industrial construction sites. The system can manage groups (batches) of terminals or individual terminals.

Detailed features / UI
Browser log-in WEB-GUI; Map navigation for dispatcher agents; Real-time monitor, health detection and alarms report list.

Caractéristiques / spécifications techniques

• Commercial model: NMSX1
• Software model/version: S- NMS-X1-0.0.4-13
• License SKU: KNNMS-X1-SNMP-0.0.4-13
• Dispatcher license: KNNMS-X1-SNMP-0.0.4-13-AG28
• Admin license: KNNMS-X1-SNMP-0.0.4-13-AD28
• Hardware SKU (server): KNSERBER-HW1
• Server OS / environment: Linux
• User interface: WEB-GUI (browser)
• Managed objects: IP PBX, Recorder, office telephones, subway station telephones, tunnel telephones, registered telephones
• Main functions: map navigation, real-time health/status monitoring, alarm reporting
• Interfaces: trunking gateway (radio systems), VoIP gateway (telephone systems), SIP protocol to PA systems and to SCADA systems
• Primary applications: large telephone dispatching systems for subway/station/industrial sites
