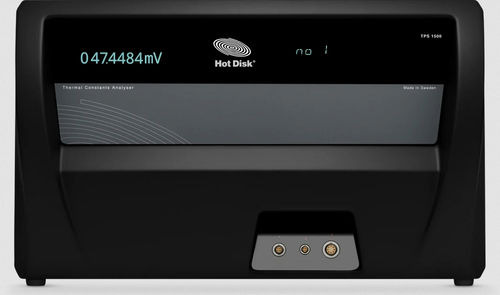

Thermal conductivity measuring instrument TPS 1500

temperatureR&Dfor liquids

The affordable Hot Disk TPS 1500 is the ideal thermal conductivity meter for testing building materials, insulation materials or any other type of large bulk samples. The TPS 1500 Thermal Conductivity range comprises 0.01 to 400 W/m/K, and the instrument handles temperatures from -100 °C to 750 °C. Sample sizes down to a thickness of a few millimeters can be accommodated. It can also analyse the anisotropic thermal transport properties of uniaxial materials. The TPS 1500 meets ISO 22007-2 and is CE marked. The well-established TPS technique – today used in more than 1000 laboratories – is highly appreciated for its ability to simultaneously and quickly determine thermal conductivity, thermal diffusivity and specific heat capacity from a single measurement, with minimum sample preparation. Utilizing the unique Hot Disk sensors, the TPS 1500 system serves as a robust tool for testing the thermal properties of solids, powders, pastes and foams. If larger samples are available, also highly conducting samples, such as metals, semi-conductors and high-conductivity oxides, can be tested. The TPS 1500 is designed as a reliable workhorse instrument for materials R&D within heavy-duty industries. The construction industry, for example, will see concrete and cement mixtures,woods, fibrous structures, and insulating materials readily and efficiently analysed. The Hot Disk Analysis software for the TPS 1500 system incorporates tools for automated measurements as well as automatic temperature control of external devices. In addition to the standard Isotropic and One-dimensional software modules the system can be extended
