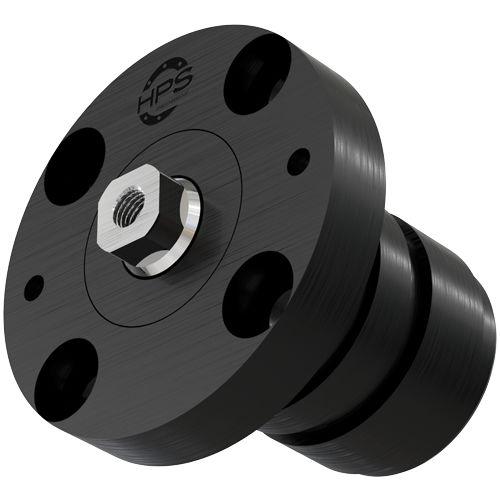

Cartridge cylinder VPP serieshydraulicdouble-actingcompact
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Configuration
- double-acting
- Other characteristics
- compact, standard, precision, cartridge
- Stroke
5 mm, 10 mm, 20 mm, 40 mm
(0.197 in, 0.394 in, 0.787 in, 1.575 in)- Bore
25 mm, 32 mm, 40 mm
(0.98 in, 1.26 in, 1.57 in)- Pressure
Max.: 200 bar
(2,900.75 psi)Min.: 0 bar
(0 psi)- Rod diameter
16 mm, 18 mm, 22 mm
(1 in, 1 in, 1 in)- Force
Max.: 2,413 daN
Min.: 260 daN
- Speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0 m/s
(0 ft/s)- Operating Temperature
Max.: 240 °C
(464 °F)Min.: -20 °C
(-4 °F)
Description
Ultra-compact cartridge cylinder, standard bore and stroke.
- Ultra-compact cartridge cylinder, ideal for small spaces and applications requiring high-precision movements.
- Double Acting cylinder designed for maximum efficiency, using high quality ISO seals.
- Working pressure up to 200 bar, guaranteeing durability and reliability.
- Configurable with Bores of 25, 32, and 40 and with four stroke dimensions.
- Double acting
- ISO Sealings
- Working pressure: 200 bar
- Bores Ø25 ... 40 mm
