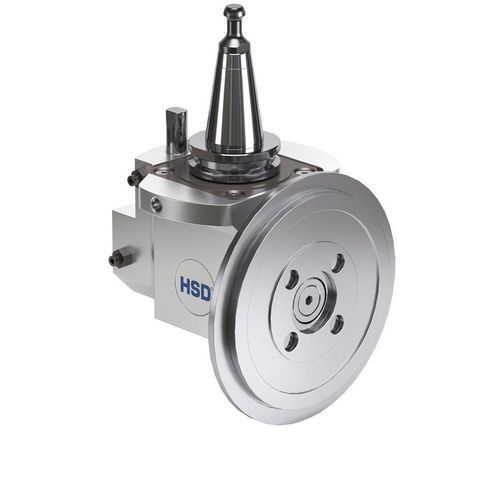

Cutting aggregate head

Overview
HSD cutting aggregates designed and manufactured for integration into industrial machining centres. Available in two main variants, they support machining of a wide range of materials and offer multiple electrospindle and tool-connection configurations.

Applicable materials

• Glass
• Wood
• Stone
• Composite

Main applications

• Cutting (Taglio)

Technical sheet
Electrospindle connection — ISO30 / HSK F63 | ISO40
Outputs n° — 1 | 1
Tool connection — Ø35 | Ø30-70
Outlet max speed [rpm] — 8400 | 3500
Main applications — Cutting (Taglio) | Cutting (Taglio)
Weight [kg] — 6 | 7

Characteristics / technical specifications

• Electrospindle connection: ISO30 / HSK F63 (variant 1) and ISO40 (variant 2)
• Number of outputs: 1
• Tool connection: Ø35 (variant 1); Ø30-70 (variant 2)
• Maximum outlet speed: 8400 rpm (variant 1); 3500 rpm (variant 2)
• Main application: cutting (Cutting / Taglio)
• Weight: 6 kg (variant 1); 7 kg (variant 2)

Notes
Product presented as a cutting aggregate for industrial machining operations; technical table shows the two available variants and their main differences.
