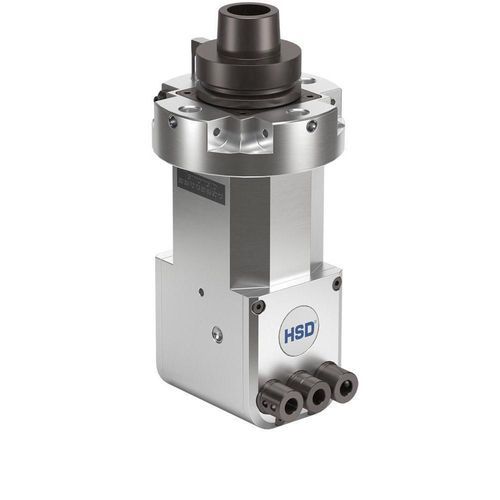

Modular aggregate head
Add to favorites
Compare this product
Characteristics
- Other characteristics
- modular
- Rotational speed
3,000 rpm, 6,000 rpm, 10,000 rpm
(18,849.56 rad.min-1, 37,699.11 rad.min-1, 62,831.85 rad.min-1)
Description
Overview
The DRILLING AGGREGATE, manufactured by HSD, is a modular drilling aggregate for industrial machining. It is designed for drilling operations on a variety of materials and for integration on CNC machining centres.
Compatible materials
Technical sheet
Electrospindle connection: ISO30/F63/E63 | ISO40
Outputs n°: 3÷6 | 1
Tool connection: Ø10 | G1/2
Outlet max speed [rpm]: 6000÷10000 | 3000
Main applications: Drilling (Foratura) | Drilling (Foratura)
Weight [kg]: 6 | 6
Applications
Notes
Product belongs to AG Line C (Aggregates family); configurations vary by electrospindle connection, number of outputs and tool interface.
The DRILLING AGGREGATE, manufactured by HSD, is a modular drilling aggregate for industrial machining. It is designed for drilling operations on a variety of materials and for integration on CNC machining centres.
Compatible materials
- Glass
- Wood
- Stone
- Composite
Technical sheet
Electrospindle connection: ISO30/F63/E63 | ISO40
Outputs n°: 3÷6 | 1
Tool connection: Ø10 | G1/2
Outlet max speed [rpm]: 6000÷10000 | 3000
Main applications: Drilling (Foratura) | Drilling (Foratura)
Weight [kg]: 6 | 6
Applications
- Through-hole and blind-hole drilling on panels and profiles
- Integration on CNC machining centres and automated production lines
Notes
Product belongs to AG Line C (Aggregates family); configurations vary by electrospindle connection, number of outputs and tool interface.
