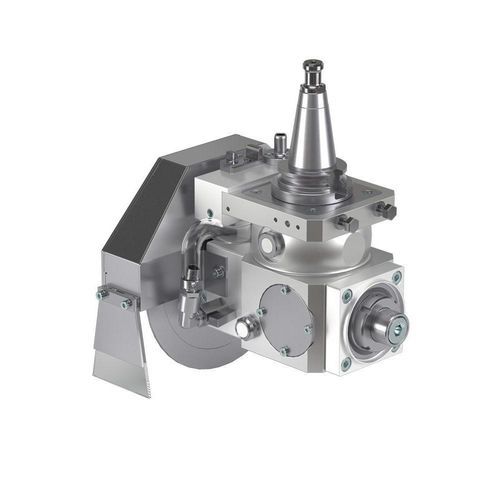

Milling aggregate head

Product overview
HSD designs, manufactures and supplies the MILLING AGGREGATE for industrial milling of glass, wood, stone and composite materials. Available in multiple configurations for electrospindle and tool interfaces, it is suitable for integration into CNC machines and automated production lines.

Suitable materials

• Glass
• Wood
• Stone
• Composite

Technical sheet
Electrospindle connection: ISO30 / HSK F63 | ISO40
Number of outputs: 2÷4 | 1÷2
Tool connection: ER16 / ER25 / ER32 | G1/2
Maximum outlet speed [rpm]: 12,000÷18,000 | 3,500
Main applications: Milling (Fresatura)
Weight [kg]: 6 | 6

Case study
Integration example: collaboration between HSD and Biesse for DA Group (see linked case history on product page).

Features / technical specifications

• Electrospindle connection options: ISO30, HSK F63 (variant) and ISO40
• Outputs: configurable 2–4 or 1–2 depending on configuration
• Tool connection options: ER16, ER25, ER32 or G1/2
• Maximum outlet speed: 12,000–18,000 rpm (high-speed variant) or 3,500 rpm
• Designed for milling operations within industrial CNC environments and automatic lines
• Approximate weight: 6 kg
