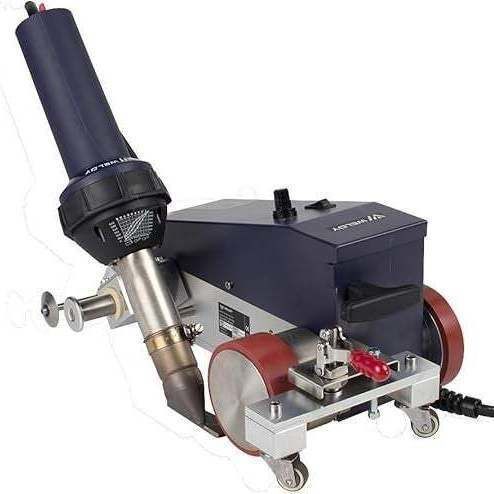

Hot air welding machine ETL

automaticfor PVCfor thermoplastics

Product description
The intuitive control and automatic start of the hot-air welding machine simplify welding of tarpaulins and advertising banners. The integrated guide roller ensures accurate tracking for overlap welds and hem seams. Suitable for thin and thick materials, the foiler ETL enables precise welding of tarpaulins, membranes and advertising banners.

Main features

• Weld seam widths of 20 or 30 mm
• Integrated guide roller
• Automatic start when swung in
• Variable speed from 0.4 to 7.5 m/min
• Adjustable welding temperature
• 1600 W hot-air blower provides the required temperature and air volume (manufacturer note in product text)
• Product variants: 20 mm or 30 mm seam width

Technical data (table)
Attribute | Value
Voltage | 230 V ~
Power | 1,700 Watt
Temperature | 40 - 530°C
Speed | 0.4 - 7.5 m/min
Weld seam width | 20 mm / 30 mm
Size (L x W x H) | 445 x 280 x 320 mm
Weight | 11 kg
Weldable materials | PVC, TPO, EPDM
Protection class | I
Conformity mark | CE

Characteristics / Technical specifications

• Voltage: 230 V ~
• Power: 1,700 Watt
• Note in product text: 1600 W hot-air blower (manufacturer specification)
• Temperature range: 40 - 530°C
• Speed: 0.4 - 7.5 m/min
• Weld seam width: 20 mm or 30 mm
• Size (L x W x H): 445 x 280 x 320 mm
• Weight: 11 kg
• Weldable materials: PVC, TPO, EPDM
• Protection class: I
• Conformity mark: CE
• Article number / SKU: 141.900
