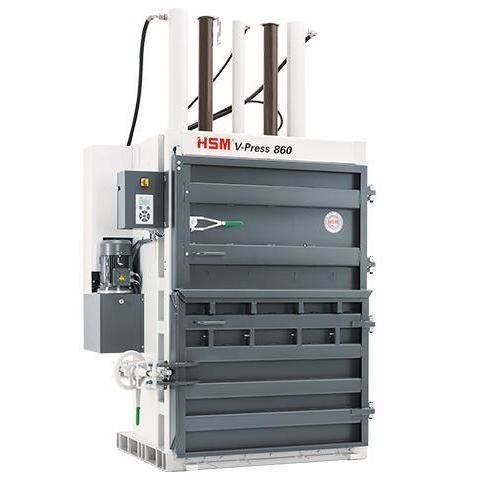

Waste baler machine HSM V-Press 860

vertical

Overview
The HSM V-Press 860 eco is a vertical baler designed for compacting cardboard and plastic film. It combines high pressing force, a large loading aperture and user-friendly operation to enable efficient baling in recycling, storage and transport applications.

Key features

• Pressing force: 594 kN for high-density bales
• Rapid stroke technology for short cycle times (typical cycle: 25 s)
• HSM TCS (Torsion Control System) for monitoring ram movement
• Retaining claws to stabilise material during pressing
• Wide-opening double door with self-locking closure and automatic start after door close
• Door lock with handwheel (counter-rotating thread) for secure and quick locking/unlocking
• Membrane keypad with text display for clear machine status
• Suitable materials: cardboard, plastic film and similar packaging materials
• Strapping options: pre-looped wire standard; optional tape station for polyester tape or wire

Technical data (comparison)

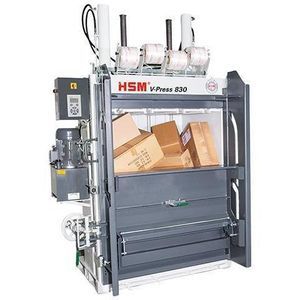

Compared products: HSM V-Press 830 plus | HSM V-Press 860 eco | HSM V-Press 860 max
Order number: 6056214 | 6048114 | 6048314
Pressing power: 300 kN | 594 kN | 594 kN
Maximum bale weight: 320 kg | 480 kg | 480 kg
Bale size (WxHxL): 1100 x 780 x 1200 mm | 1200 x 780 x 1200 mm | 1200 x 780 x 1200 mm
Loading aperture (WxH): 1195 x 530 mm | 1195 x 650 mm | 1195 x 650 mm
Number of strappings: 4 | 4 | 4
Motor: 4 kW | 4 kW | 4 kW
Voltage / Frequency: 400 V / 50 Hz | 400 V / 50 Hz | 400 V / 50 Hz
Cycle time: 47.5 s | 25 s | 25 s
Dimensions (WxDxH): 1717 x 1247 x 2570 mm | 1797 x 1070 x 2985 mm | 1801 x 1248 x 2990 mm
Machine weight: 1445 kg | 1900 kg | 2232 kg

Characteristics / technical specifications

• Model family: HSM V-Press 860 eco
• Pressing power: 594 kN
• Maximum bale weight: up to 480 kg
• Bale dimensions (WxHxL): 1200 x 780 x 1200 mm
• Loading aperture (WxH): 1195 x 650 mm
• Number of strappings: 4
• Consumables: pre-looped wire (e.g. pre-looped wire 2.80x3700 compatible with V-Press 860 family)
• Motor: 4 kW
• Voltage / Frequency: 400 V / 50 Hz
• Cycle time: approx. 25 s (typical)
• Dimensions (WxDxH): 1797 x 1070 x 2985 mm
• Machine weight: approx. 1900 kg
• Usable materials: cardboard, plastic film and similar
• Optional equipment: tape station for polyester tape or wire for strapping; door and locking variants
