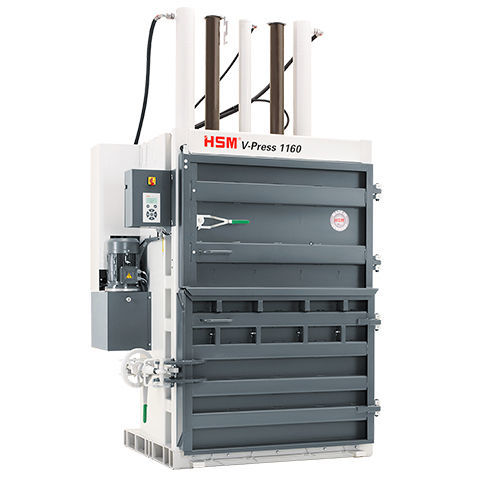

Waste baler machine HSM V-Press 1160

vertical1200x1100x1200

Overview
The HSM V-Press 1160 eco is a compact vertical baler for cardboard and plastic film. It provides 594 kN pressing power and produces bales up to 550 kg, suitable for storage, transport and commercialisation.

Product highlights

• Maximum bale weight: 550 kg
• Pressing power: 594 kN
• Suitable for cardboard and plastic film
• Rapid traverse technology for short cycle times and energy‑efficient operation
• Optimised bale dimensions for efficient storage and transport

Main features

• Pressing power: 594 kN
• Automatic start of the pressing process after closing the door
• HSM TCS (Torsion Control System) for monitoring press ram movement
• Hand wheel door lock with counter‑rotating thread for quick opening and closing
• Membrane keypad with text display showing current machine status
• Filling concept: double door (upper half swings to right) or sliding door variants available
• Strapping options: pre-looped wire; optional tape station for polyester tape or wire

Consumable materials

• Pre-looped wire 2,80x4400 – V-Press 1160 (recommended)

Technical specifications

• Order number (eco model): 6044114
• Pressing power: 594 kN
• Maximum bale weight: 550 kg
• Bale size (W x H x L): 1200 x 1100 x 1200 mm
• Loading aperture (W x H): 1195 x 650 mm
• Number of strappings: 4
• Type of consumables: pre-looped wire
• Motor: 4 kW
• Voltage / Frequency: 400 V / 50 Hz
• Cycle time: 25 s
• Machine dimensions (W x D x H): 1780 x 1388 x 2985 mm
• Machine weight: 2300 kg
