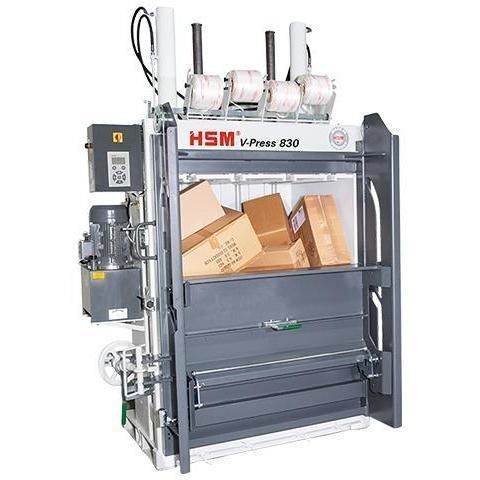

Cardboard baler machine HSM V-Press 830 plus

for paperfor textilesfor film

Product overview
With a pressing power of 300 kN and a low overall height, the HSM V-Press 830 plus is a compact and powerful vertical baler for cardboard, plastic foil and more, designed to save space in expensive storage areas and to facilitate transport and handling of recyclable materials.

Suitable materials

• Cardboard
• Plastic foil / film
• Mixed paper
• Textiles
• Paper edge trim

Key features

• Pressing power: 300 kN
• Maximum bale weight up to 320 kg
• Bale size: 1100 x 780 x 1200 mm (WxHxL)
• Low installation height and small footprint
• Upper half of the doors is pushed down to fill the press and automatically opens after compression
• Automatic start of the pressing process after closing the door
• Convenient membrane keypad with text display showing machine status
• Hand wheel door lock with counter-rotating thread for quick opening and closing
• Massive press ram and robust press plate guidance for optimized compaction
• HSM TCS (Torsion Control System) for monitoring press ram movement
• Strapping with pre-looped wire (optional tape station available for polyester tape or wire)
• Suitable for cardboard as well as film

Caractéristiques / spécifications techniques

• Pressing power: 300 kN
• Maximum bale weight: 320 kg
• Bale size (WxHxL): 1100 x 780 x 1200 mm
• Loading aperture (WxH): 1195 x 530 mm
• Number of strappings: 4
• Type of consumables: pre-looped wire
• Motor: 4 kW
• Voltage / Frequency: 400 V / 50 Hz
• Cycle time: 47.5 s
• Dimensions of machine (WxDxH): 1717 x 1247 x 2570 mm
• Machine weight: 1445 kg
