Continuity tester HZRC2000+

leakage currentgrounding resistorearth resistance

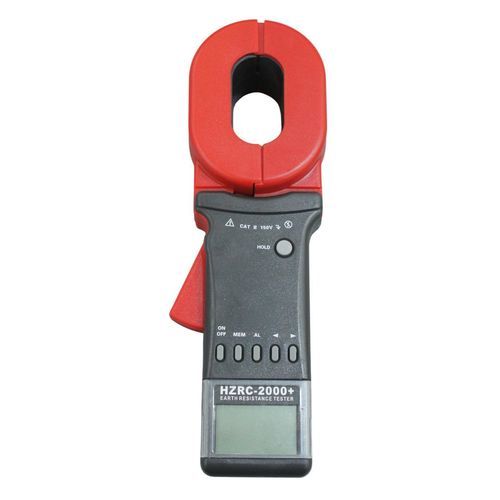

• Resistance measurement range: 0.01Ω–1200Ω • Current measurement range: 0.00mA–20.0A (C+ model) • Jaw size: 65×32mm (φ32mm optional) • Data storage: up to 99 units • Resistance accuracy: ±(1%+0.01Ω) to ±(25%+30Ω) • Current accuracy: ±(2.5%+2mA) to ±(2.5%+1A) • Alarm functions: resistance 1–199Ω, current 1mA–499mA • Power supply: low-consumption circuit, ≤50mA The Huazheng HZRC2000+ Earth Resistance Tester is a clamp-type device for fast, safe, and precise grounding measurements. Its self-test technology eliminates boot delays and ensures instant readiness. Advanced digital integration algorithms improve stability and anti-jamming performance. Intelligent features include sound-light alarms, interference recognition, and intuitive six-button operation. Compact and lightweight compared with traditional testers, it is optimized for handheld use and field applications. Widely used in power systems, telecommunications, meteorology, oilfields, construction, and industrial equipment, the HZRC series measures grounding body and lead resistance without disconnecting wires or auxiliary electrodes. It detects hidden faults, evaluates leakage and neutral currents, and offers selectable models with different jaw sizes and current functions, ensuring convenient, reliable, and efficient earth resistance testing in demanding environments.
