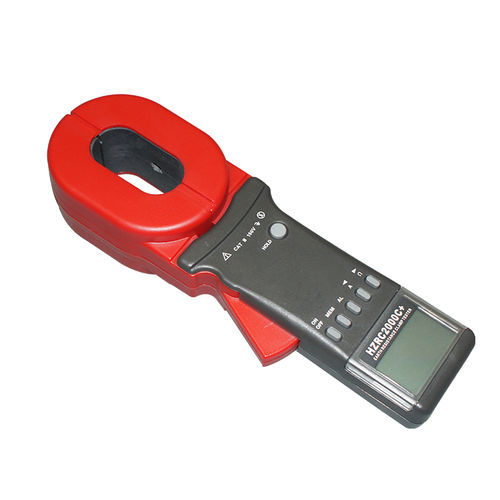

Earth-leakage tester HZRC-2000+

earth resistivitylow-resistancefor soil

Instrument safety: IEC/EN61010-1, IEC/EN6010-2-032 Insulation: double insulation Pollution degree: class II Overvoltage category: CAT III 150V to ground, Max 20A Degrees of protection: -IP30, Group III equipment as per EN 60529 Ed 92 -IK04, as per EN 50102 Ed 95 Dimensions(L×W×H): -Long elliptic jaw: 285mm×90mm×66mm; (11×4×3 inches) -Round jaw: 260mm×90mm×66mm;(10×4×3 inches) Span of Jaw: Long elliptic jaw 35mm; round jaw 32mm Weight (including batteries): Long elliptic jaw-1160g, Round jaw-1120g Battery type: 4 ×1.5V alkaline LR6 AA battery Low battery indication: is displayed Internal consumption: <50mA Auto Power off: after 5 minutes of idleness Display: 4 LCD, sign, decimal point and backlight Memory size: 99 Units of Reading Environment (Temperature & Relative Humidity): -Working: -10°C~55°C, 10%RH-90%RH -Storage: -20°C ~60°C, below 70%RH Range shift: Full range automatic shifting External magnetic field: <40A/m External electric field: <1V/m Data upload interface: RS232 (Optional)
