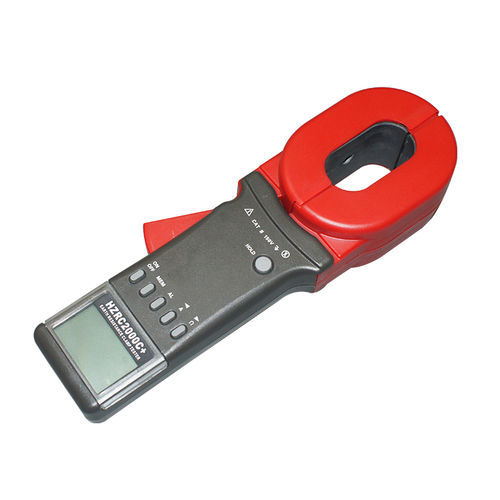

Earth resistance tester HZRC2000+

electricoperationalfor soil

The HZRC series clamp-on grounding resistance meter is widely used in grounding resistance and loop resistance measurement for power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring a grounding system with a loop, there is no need to disconnect the grounding down conductor or use auxiliary electrodes, ensuring safety and speed. It can measure ground faults that traditional methods cannot, since the HZRC series measures the combined resistance of the grounding body and lead. The HZRC series includes long-jaw and round-jaw models. The long-jaw type is ideal for flat steel grounding, while the C-type clamp model can also measure leakage and neutral current in the grounding system. • Long Pincers Jaw: 65mm×32mm • Round Pincer Jaw: φ32mm • Trigger: controls jaw opening and closing • HOLD Key: lock/release display/storage • POWER Key: power on/off/quit/clear data • MEM Key: data access/clear data • AL Alarm Function Key: alarm on/off and threshold setting • Resistance Measure Switch Key Ω (Right Arrow Key) • Current Measure Switch Key A (Left Arrow Key) • LCD Display
