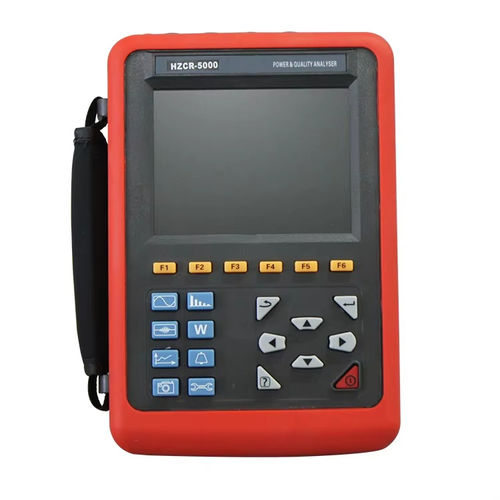

Power quality analyzer HZCR-5000

3-phase electrical networkshandheldautomatic

• Voltage: 1V–1000V (phase-neutral), 1V–2000V (phase-phase), ±0.5% • Current: 10mA–6000A, ±0.5% • Frequency: 40–70Hz, ±0.03Hz • Power: ±1% (cosφ ≥0.8) • Harmonics: 0–50 order, ±1% • Storage: 2GB memory, 60 screenshots, 150 transients, 12,800 alarms, 300 days trend • Display: 5.6-inch LCD, 640×480 • Power Supply: Rechargeable lithium battery, 8h use • Size & Weight: 240×170×68mm, 1.6kg host, ~9.2kg total • Safety: IEC61010 1000V CAT III / 600V CAT IV HZCR-5000 Power Quality Analyzer is a multifunctional three-phase analyzer with DSP+ARM dual processor, large LCD display, and durable design. It measures voltage, current, power, power factor, harmonics (up to 50th), flicker, unbalance, and transformer K factor, with real-time waveform, phasor, and harmonic bar chart display.It supports transient capture, starting current monitoring, alarms, long-term trend recording, and USB data export. Widely used in power, petrochemical, metallurgy, railway, mining, research, and calibration fields for fast and accurate power quality analysis.
