Signal analyzer HZCR-5230

monitoringfor electrical networks3-phase electrical networks

Overview

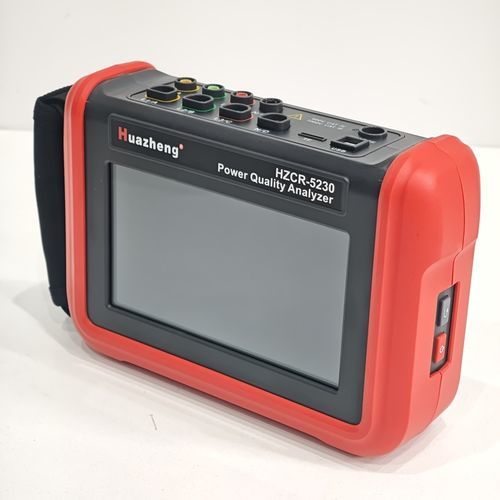

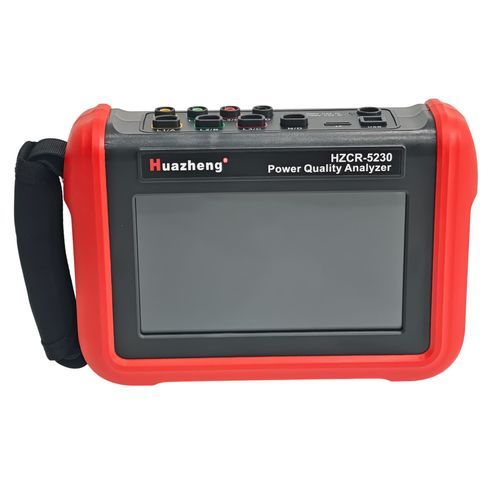

The Huazheng HZCR-5230 is a portable power quality analyzer designed for field use in substations and industrial sites. It measures 3 voltage channels and 4 current channels simultaneously with class 0.5 accuracy and meets IEC-61010 safety categories (CAT III 1000 V / CAT IV 600 V). The unit captures real-time waveforms, phase diagrams and TRMS values, and stores data locally for post-analysis.

Main capabilities

• Simultaneous measurement: 3 voltage channels + 4 current channels.
• Harmonic analysis up to 51st order with per-harmonic phase angle and THD per phase.
• Event detection: voltage flicker, sag, swell, inrush current and three-phase unbalance.
• Single-button tests: volt-ampere phase test, turns-ratio verification and DC measurement to speed inspections.
• Data storage & export: built-in 8 GB memory, expandable to 32 GB; USB export to PC.
• User interface & protection: 7-inch color touchscreen with English/Chinese switch; double-insulated anti-vibration sheath.
• Power: rechargeable lithium battery 7.4 V, 5200 mAh for extended field operation.

Technical specifications

• Model: HZCR-5230 • Brand: Huazheng
• Accuracy: Class 0.5
• Channels: 3 voltage channels, 4 current channels
• AC voltage range: 0.001 V ~ 1000 V
• DC voltage range: 0.1 V ~ 1000 V
• Frequency range: 40 Hz ~ 70 Hz
• Harmonic analysis: up to 51st order (per phase) with phase angle measurement
• THD: per phase up to 51 orders
• Memory: 8 GB internal, expandable to 32 GB
• Input impedance (voltage): 1 MΩ
• Working current: approx. 490 mA
• Battery indicator & auto-shutdown: battery level display; configurable auto-shutdown (e.g. 15/30/60 min)
• Withstand voltage: instrument circuit and housing withstand 3700 V / 50 Hz AC for 1 minute
• Insulation: ≥ 10 MΩ between instrument circuit and housing
• Structure: double insulation with anti-vibration sheath
• Safety standards: IEC-61010 (CAT III 1000 V / CAT IV 600 V), IEC-61010-03, IEC-61326
• Weight: approx. 8 kg (including accessories)
• Communication: USB

Current sensors & ranges
The analyzer supports up to 6 interchangeable current sensors to cover compact switchgear and large busbar systems without tool changes. Typical sensor types and example ranges:

• Clamp sensors (examples): aperture Ø8 mm, 32×40 mm, Ø50 mm — model-dependent AC ranges (e.g. 10 mA ~ 10 A; 0.1 A ~ 100 A; 1 A ~ 1000 A).
• Flexible coil sensor: AC range typically 10 A ~ 6000 A for large conductors.
• DC current sensor (e.g. 35AD): DC range example 0.1 A ~ 1000 A.

Notes
Designed for rugged field operation: robust enclosure, anti-vibration sheath, multilingual display (English/Chinese) and long battery life to support extended measurement campaigns. Accessories and sensor configurations vary by ordering option.
