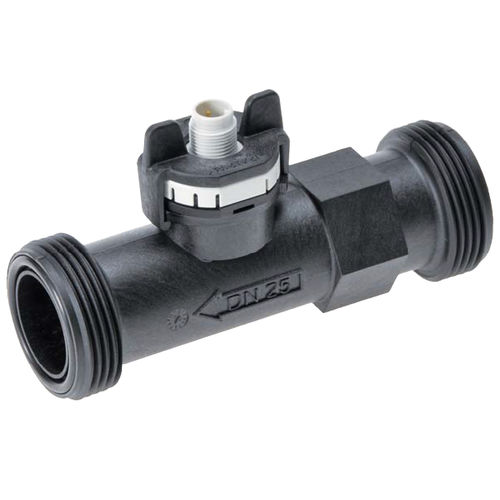

Vortex flow meter 210
for liquidsDN25 - 1"DN15 - 1/2"

vortex flow meter
vortex flow meter
vortex flow meter
vortex flow meter
vortex flow meter
vortex flow meter
vortex flow meter
Add to favorites
Compare this product


Characteristics

Technology
vortex
Fluid
for liquids
Pipe diameter
DN25 - 1", DN15 - 1/2", DN20 - 3/4", DN10 - 3/8", DN8 - 1/4", DN6 - 1/8"
Installation
in-line
Material
plastic
Communication
4-20 mA
Other characteristics
high-accuracy
Volumetric flow rate

Min.: 0.5 l/min
(0.1 us gal/min)

Max.: 150 l/min
(39.6 us gal/min)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 125 °C
(257 °F)

Process pressure

Min.: 0 bar
(0 psi)

Max.: 18 bar
(261.07 psi)

Description

In comparison to the OEM flow sensor (type 200) the type 210 is available with a larger variety concerning power supply and outputs. You can choose between various versions as integrated temperature measurement. This flow sensor without moving parts is insensitive to pollution and persuade by very few loss of pressure and a very high accuracy. Special snap mounting bracket for easy single handed mounting in sheet steel of varying thicknesses Flow measuring with voltage, current, pulse or frequency output Excellent media resistance (measuring element not in contact with the media) Available with integrated temperature measurement Temperature non-sensitive measuring principle Wide application temperature range Marginal loss of pressure Measuring element not sensitive to debris Drinking water approval
