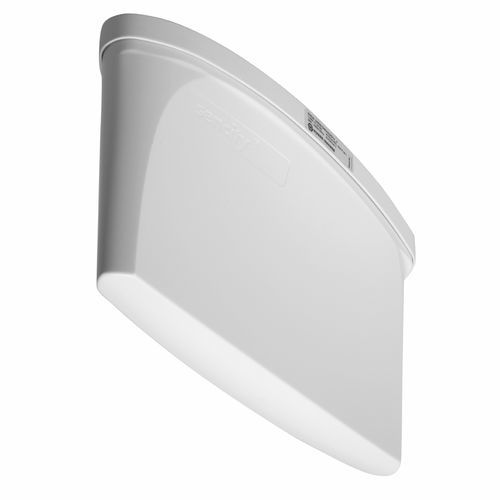

Radio antenna SENCITY® ULTRA

LTE5G2G

Indoor DAS omni-directional antenna for in-building coverage Vertical polarized omni-directional high gain antenna How to use it Designed for use in 5G, 4G,3G,2G, Wi-Fi and Tetra systems. Specifications Remarks - For further information please refer to data sheet. Electrical remarks IMD level - -150 dBc at carrier power 2x 43 dBm Remarks - PIM 2x43dBm <-150dBc (@1800MHz) Requires a ground plane of min. 620 x 620 mm (included in antenna shipment) for 380 MHz to 690 MHz operation (please also refer to Mounting Instruction DOC-0000331648) VSWR tested with ground plane and max. ceiling tile thickness of 15mm across 380 MHz to 5875 MHz Mechanical data Weight - 0.8 kg Dimensions - 153.6 mm x 78.6 mm x 255 mm (Height x Width x Depth) Material data Radome material - ASA (acrylic ester-styrene-acrylonitrile) Radome colour - RAL 9010 (white) Back plate/base plate material - Aluminum Back plate/base plate colour - RAL 9010 (white) Environmental data Operation temperature - 0 °C ... 55 °C Storage temperature - -40 °C ... 80 °C Transport temperature - -40 °C ... 80 °C Flammability rating - UL 94-HB
