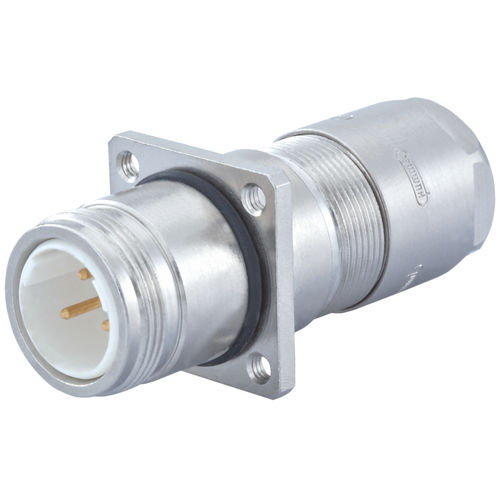

Data connector 7.847.300.000
DINcircularplug-in

data connector
data connector
Add to favorites
Compare this product


Characteristics

Type
data
Format
DIN
Shape
circular
Connection type
plug-in, screw, locking
Size
M16
Material
copper, aluminium, zinc, aluminum alloy
Product applications
housing, cable, for panels, external thread
Protection class
IP67, IP69K
Other characteristics
strain relief

Description

Cable diameter - 2 – 7 mm External thread plug-in side - M16 x 0,75 Housing type - Panel Installation type - Strain relief Locking type - Screw connection,Snap in Material housing - Aluminium alloy,Copper-Zinc alloy, Zinc Die Cast Material housing surface - Nickel Material seals/o-rings - FKM (FPM), NBR Protection class - IP 67,IP 69 K Shield - shielded Temperature range - -40°C to +125°C Wrench size (SW1/SW2) - 15/20 mm Panel hole - Ø 16,2 + 0,1 mm Housing without contact inserts Electrical data depend on the contact insert M16 Contacts M16 Inserts M16 Accessories You can find further information in the Technology Center Assembly instruction M16 panel connector Applications and References Product Video (circular connectors) Note on storage of articles with elastomer components (circular connectors)
