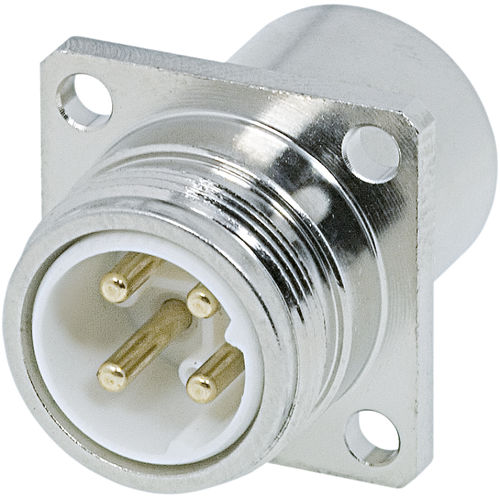

Panel connector 7.840.200.000datacircularflange
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- circular
- Connection type
- plug-in, flange, locking, screw-locked
- Size
- M16
- Material
- copper, zinc, aluminum alloy
- Product applications
- housing, external thread, panel
- Protection class
- IP67, IP69K
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Material housing - Aluminium alloy,Copper-Zinc alloy,Zinc Die Cast
Material housing surface - Nickel
Installation type - Front wall
Version - short version
External thread plug-in side - M16 x 0,75
Locking type - Screw
Shield - unshielded
Seal type - O-Ring
Material seals/o-rings - FKM (FPM),NBR
Panel hole - Ø 15,2 + 0,1 mm
Flange - 20 x 20 mm
Hole distance - 15 mm
Hole diameter - 4 x Ø 2,7 mm
Length (L) - 26 mm
Wrench size (SW) - 20 mm
