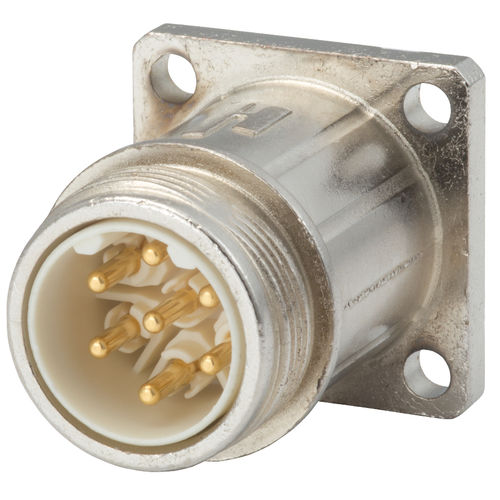

Data connector 7.840.100.000circularflangeplug-in
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- circular
- Connection type
- flange, plug-in, locking
- Size
- M16
- Material
- nickel
- Product applications
- housing, external thread
- Protection class
- IP67, IP69K
Description
External thread plug-in side - M16 x 0,75
Flange - 25 x 25 mm
Hole diameter - 4 x Ø 2,7 mm
Hole distance - 19.8 mm
Housing type - Panel
Installation type - Flange,Front wall
Length (L) - 23.5 mm
Locking type - Screw connection,Snap in
Material housing - Zinc Die Cast
Material housing surface - Nickel
Material seals/o-rings - NBR
Protection class - IP 67,IP 69 K
Seal type - O-Ring
Shield - unshielded
Temperature range - -40°C to +125°C
Panel hole - Ø 20 + 0,1 mm
Housing without contact inserts
Electrical data depend on the contact insert
M16 Contacts
M16 Inserts
M16 Accessories
You can find further information in the Technology Center
Assembly instruction M16 panel connector
Applications and References Product Video (circular connectors)
Note on storage of articles with elastomer components (circular connectors)
