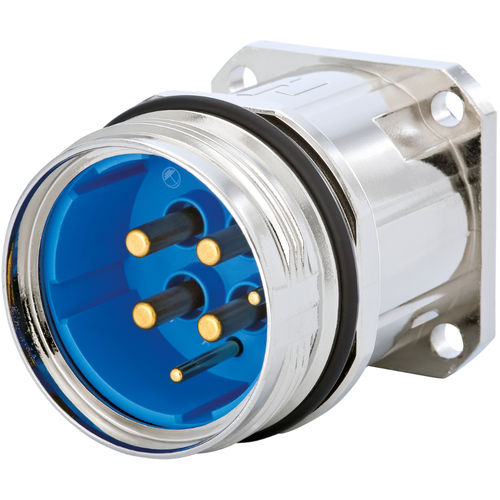

Panel connector 7.740.023.00Sdatacrimpplug-in
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- crimp, plug-in, flange
- Size
- M40
- Electrical characteristics
- power, 6-pole
- Product applications
- external thread, panel
- Protection class
- IP67, IP69K
- Primary current
28 A, 55 A
- Voltage
300 V, 600 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
M40 Power panel connector
Material housing - Zinc Die Cast
Material housing surface - Nickel
Insert - Pin
Installation type - Front wall
Version - TWILOCK-S
External thread plug-in side - M40 x 1,5
TWILOCK thread - M40 x 1,5
Shield - unshielded
Seal type - O-Ring
Material seals/o-rings - FKM (FPM),NBR
Panel hole - Ø 32 + 0,1 mm
Flange - 40 x 40 mm
Hole distance - 30 mm
Hole diameter - 4 x Ø 4,5 mm
Length (L) - 51 mm
Degree of Protection - 3
Characteristic of connection - Crimp
Pole picture - 2 + 3 + PE
VIDEO
Catalogs
No catalogs are available for this product.
See all of HUMMEL‘s catalogsOther HUMMEL products

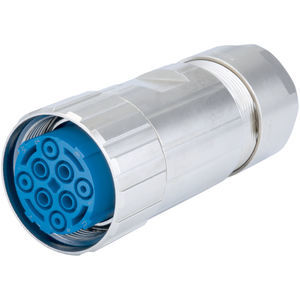

M40 Power
