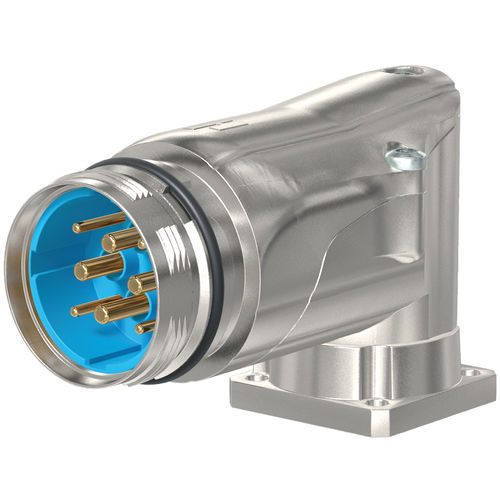

Data connector 7.749.043.00S

crimpflangeplug-in

Allen key/Torx - T20 Characteristic of connection - Crimp Color contact insert - blue Contact-Ø power - 3.6 mm Contact-Ø signal - 2 mm Crimp range - 0.14 – 10 mm² Degree of Protection - 3 External thread plug-in side - M40 x 1,5 Flange - 40 x 40 mm Hole diameter - 4 x Ø 4,5 mm Hole distance - 30 mm Housing type - Panel - right angled Insert - Pin Insulation resistance power - > 10^13 Ω Insulation resistance signal - > 10^13 Ω Length (L) - 103 mm Material housing - Zinc Die Cast Material housing surface - blue passivated Material insulating body - PBT Material seals/o-rings - FKM (FPM),HNBR max. contact resistance data - 3 mOhm max. contact resistance power - 1 mOhm max. contact resistance signal - 3 mOhm Nominal current power - 55 A Nominal voltage at degree of pollution 3 power - 600 V~ Nominal voltage at degree of pollution 3 signal - 300 V~ Nominal current signal - 28 A Number of contacts PE - 1 Number of contacts power - 3 Number of contacts signal - 4 Number of poles - 8 Pole picture - 4 + 3 + PE Protection class - IP 67,IP 69 K Seal type - O-Ring Shield - unshielded Temperature range - -40°C to +125°C Terminal cross section power - 2.5 – 10 mm² Terminal cross section signal - 1.5 – 1.5 mm² Test voltage power - 4000 V~ Test voltage signal - 2500 V~ TWILOCK thread - M40 x 1,5 Version - right angled,TWILOCK-S Minimum mating cycles - > 500 Panel hole - Ø 32 + 0,1 mm Rotatable - 330 °
