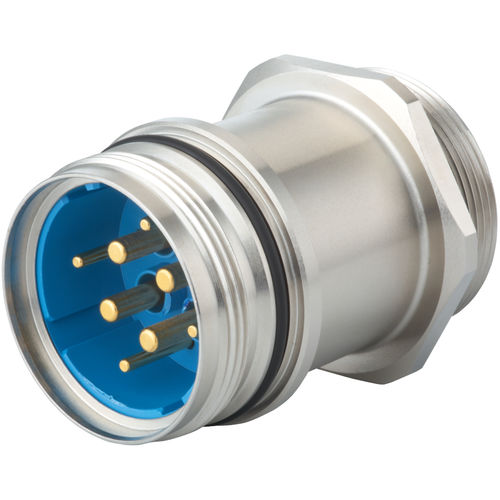

Electrical power supply connector 7.742.043.000circularcrimpplug-in
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- circular
- Connection type
- crimp, plug-in, screw-locked
- Size
- M40
- Electrical characteristics
- power, 8-pole
- Material
- copper, zinc
- Product applications
- external thread, panel
- Protection class
- IP67, IP69K
- Primary current
28 A, 55 A
- Voltage
300 V, 600 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
M40 Power panel connector
Material housing - Copper-Zinc alloy
Material housing surface - Nickel
Insert - Pin
Installation type - Front wall
Version - for pin inserts
External thread plug-in side - M40 x 1,5
Locking type - Screw
Shield - unshielded
Seal type - O-Ring
Material seals/o-rings - FKM (FPM),NBR
Panel hole - Ø 40,2 + 0,1 mm
Length (L) - 62.5 mm
Wrench size (SW) - 28 mm
Degree of Protection - 3
Characteristic of connection - Crimp
Number of poles - 8
Pole picture - 4 + 3 + PE
Color contact insert - blue
Material insulating body - PBT
