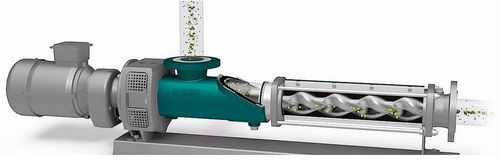

Our G series single progressive cavity pump, main components and characteristics are as follows:
1.Rotor. Using the most advanced grinding and polishing process, improve the performances of wear resistance, hardness characteristics and corrosion resistance, to extend its service life-time;
2.Stator. Both ends with sealed flanges, to make rotor and the launcher fully cooperated to improve work efficiency;
3.Shaft seal. Customers can choose the sealing methods according to the specific conditions. Standard configuration is mechanical seal;
4.Feeding port.
5.Outlet. Using wear-resistant materials;
6.Motor. Variable speed motor, explosion-proof motor for optional;
Features of G series single screw pump are as follows:
1.Wide range of applications. Materials with TS% up to 60% and concentration up to 1,000,000CPS can be transported effectively;
2.Low mechanical vibration and noise, without agitation, shear, turbulence and stirring in transmission;
3.High self-absorption ability, suction height on the vacuum up to 8.5 meters.
4.The unique structure of rigid rotor plus resilient stator makes it possible to transport solid particles;
5.The temperature of the material to be conveyed can be up to 120 degrees Celsius, the flow rate up to 500m3 / h. Pressure up to 9.6 MPa;
6.Flow and speed are in a strict linear relationship, adjusting the speed to control the flow, usually used as metering pump;
7.The hardness of stainless steel (304,316,316 L, 904,329J1, etc.) rotor could reach HRC55-60, after special physical&chemical treatment, to make high performance of corrosion and wear resistance.
