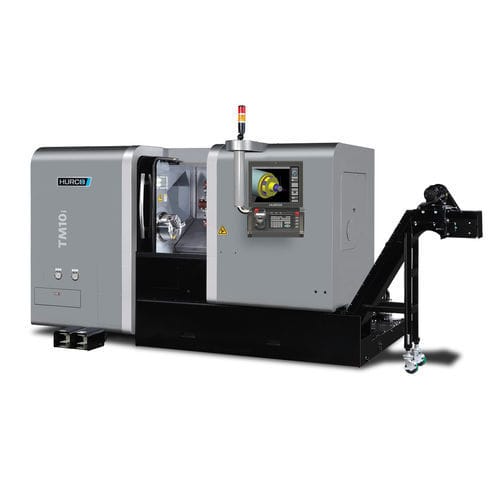

CNC turning center TM 10 i2-axis12 toolsuniversal
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 12 tools
- Other characteristics
- universal, with turret, spindle
- Diameter
304 mm
(11.97 in)- Spindle speed
3,000 rpm
(18,849.556 rad.min-1)- Bar capacity
40 mm
(2 in)- Axe X
250 mm
(10 in)- Axe Z
790 mm
(31 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
22 kW
(29.9 hp)- Maximum torque
351 Nm
(259 ft.lb)- Overall lenght
5,032 mm
(198 in)- Overall width
2,854 mm
(112 in)- Overall height
2,233 mm
(88 in)- Weight
5,050 kg
(11,133 lb)
Description
The perfect combination of size and functionality
MACHINE CAPACITY
Swing over bed diameter (mm) - 582
Swing over cross slide diameter (mm) - 402
SPINDLE
Chuck diameter (mm) - 260
Draw Tube Diameter (mm) - 81
TURRET
Type - VDI 40
Tool Shank Width (mm) - 25
