CNC turning center TMX 8MYi
4-axisVDI 4012 tools

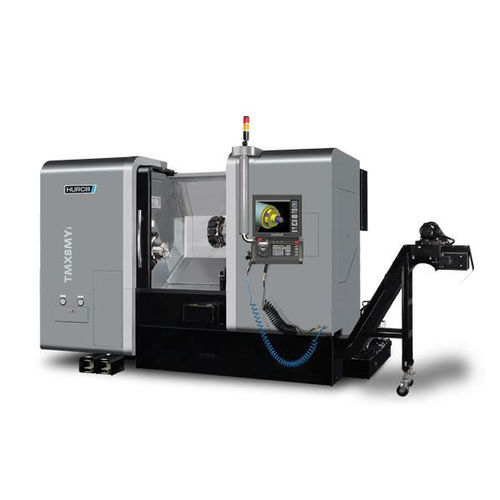

CNC turning center - TMX 8MYi - Hurco GmbH Werkzeugmaschinen - 4-axis / VDI 40 / 12 tools
CNC turning center - TMX 8MYi - Hurco GmbH Werkzeugmaschinen - 4-axis / VDI 40 / 12 tools
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
4-axis
Spindle mount
VDI 40
Number of tool stations
12 tools
Performance
high-productivity, powerful
Diameter

336 mm
(13.23 in)

Spindle speed

4,500 rpm
(28,274.334 rad.min-1)

Bar capacity

40 mm
(2 in)

Axe X

285 mm
(11 in)

Axe Z

560 mm
(22 in)

Rapids on X

24 m/min

Rapids on Z

30 m/min

Nominal power

17.2 kW, 25 kW
(23.4 hp, 34 hp)

Maximum torque

164 Nm, 239 Nm
(121 ft.lb, 176 ft.lb)

Overall lenght

5,519 mm
(217 in)

Overall width

3,296 mm
(130 in)

Overall height

2,552 mm
(100 in)

Weight

7,500 kg
(16,535 lb)

Description

TRAVELS Y-Axis (mm) - +/- 55 W-Axis (mm) - 640 MACHINE CAPACITY Max. swing over bed (mm) - 508 SPINDLE Chuck diameter (mm)-210 Draw Tube Diameter (mm)-64,5 Live Tools Spindle Speed max. (rpm)-5.000 Spindle Power (kW)-6,3 Spindle Torque max. (Nm)-28 TURRET Tool Shank Width (mm) - 25
