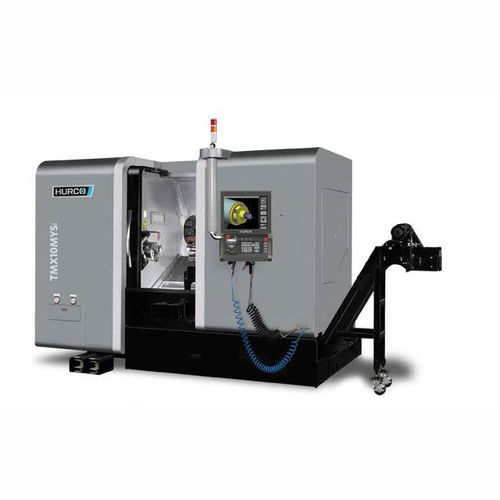

CNC turning center TMX 10 MYSi4-axisVDI 4012 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 4-axis
- Spindle mount
- VDI 40
- Number of tool stations
- 12 tools
- Performance
- high-speed
- Diameter
375 mm
(14.76 in)- Spindle speed
3,500 rpm, 6,000 rpm
(21,991.149 rad.min-1, 37,699.112 rad.min-1)- Bar capacity
40 mm
(2 in)- Axe X
305 mm
(12 in)- Axe Z
670 mm
(26 in)- Rapids on X
24 m/min
- Rapids on Z
30 m/min
- Nominal power
11 kW, 15 kW, 24 kW, 28 kW
(15 hp, 20.4 hp, 32.6 hp, 38.1 hp)- Maximum torque
75 Nm, 102 Nm, 229 Nm, 267 Nm
(55 ft.lb, 75 ft.lb, 169 ft.lb, 197 ft.lb)- Overall lenght
5,523 mm
(217 in)- Overall width
3,052 mm
(120 in)- Overall height
2,552 mm
(100 in)- Weight
7,700 kg
(16,976 lb)
Description
Built for speed and repeatibility
TRAVELS
Y-Axis (mm) - +/- 55
W-Axis (mm) - 740
MACHINE CAPACITY
Max. swing over bed (mm) - 560
SPINDLE
Chuck diameter (mm) - 254
Draw Tube Diameter (mm)-78
LIVE TOOLS
Spindle Speed max. (rpm) - 4.000
Spindle Power (kW) - 5,4
Spindle Torque max. (Nm) - 24
TURRET
Tool Shank Width (mm) - 25
