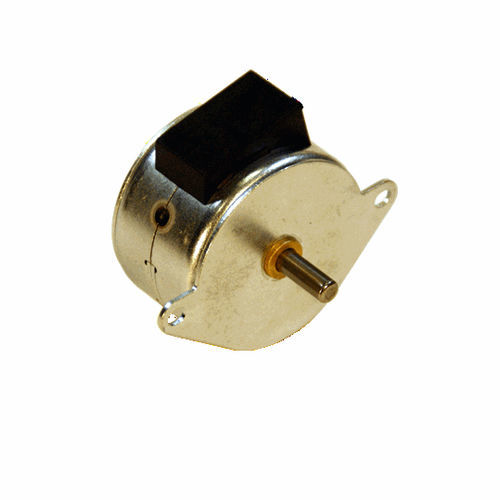

AC motor LYD55
synchronous220 V230 V

AC motor
AC motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
synchronous
Voltage
220 V, 230 V, 240 V, 24 V
Configuration
permanent magnet, capacitor
Other characteristics
direct-drive, with sleeve bearing
Power

5 W, 7 W
(0.007 hp, 0.01 hp)

Torque

0.468 Nm, 0.612 Nm
(0.3452 ft.lb, 0.4514 ft.lb)

Rotational speed

250 rpm, 300 rpm
(1,570.8 rad.min-1, 1,884.96 rad.min-1)

Diameter

55 mm
(2.17 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -10 °C
(14 °F)

Description

Standard Voltages: 115/230 Vac & 24 Vac 50/60 Hz Insulation Class: Class A (105°C) Lead Wire: 4 leads 22AWG (approx. 9 inches [228.6 mm]) Shaft Bearings: Sleeve bearings Recognition: E53578(N), Component-Impedance Protected Motors Capacitor is required for operation. Capacitor supplied with 115 Vac motors. Note: Typical data subject to change without notification
