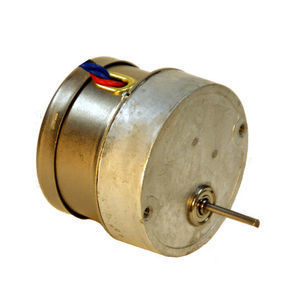

Synchronous motor KS

ACcapacitorvariable reluctance

Reluctance Synchronous KS Direct Drive Specifications: Mounting:NEMA 2-11 Standard Output Speed:1800 RPM Insulation Class:Class A (105°C) Lead Wire: 3 leads 22AWG (approx. 12 inches [304.8 mm]) Operation Ambient Temp:-10°C to +40°C (approx.) Recognition: E52207, Component-Systems, Electrical Insulation E53578(N), Component-Impedance Protected Motors Capacitor is required for operation. Capacitor supplied with 115 Vac 60 Hz motors. Note: Typical data subject to change without notification Addtional Information: A direct replacement for other motors of this type, KS Series motors are available for both direct drive and geared applications. Direct Drive models offers a 60 Hz synchronous speed of 1800 RPM. Both Direct Drive and geared motors are reversible, designed for continuous operation and require no maintenance lubrication. Motors provide a NEMA type 2-11 mounting. Geared models have a "Heli-Spur" combination with the primary gear stage helical and the subsequent stages, spur. This gearing design provides for quiet, efficient operation. Maximum gear train loading is 250 oz-in [1765 mN-m] at 1 RPM. Notes: • A capacitor is required for operation. • All motors listed below are 115 Vac 60 Hz models.
