Three-phase generator set PP 492

50 Hz60 Hzfor construction site

Product description

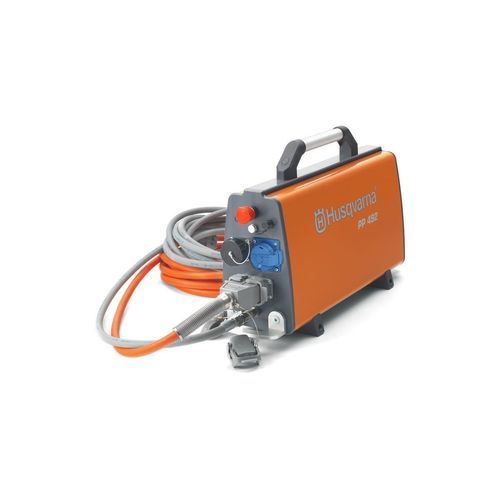

Husqvarna PP 492 electric power pack supplies power to large wall sawing systems (WS 400 series), the CS 10 wire saw and WSC 40 wall saw attachment, as well as PRIME™ handheld power cutters and drill motors. The unit centralizes power delivery so several cutting tools can operate from the same source.

Key features

• High-frequency power pack with 20 kW output
• Designed for use with wall saws, wire saws and PRIME™ handheld equipment
• Adaptive software regulation for fast adjustment to operating conditions
• Power pack unit separated from cutting equipment to reduce exposure to dirt and vibrations

Additional information

• Multiple products can use the same power pack to reduce the number of machines required on site
• Specifically designed to power WS 400 series wall saws, CS 10 wire saw and WSC 40 wall saw attachment, as well as PRIME™ handheld power cutters and drill motors
• Smart regulation provides fast and accurate adaptation for different materials during cutting

Caractéristiques / spécifications techniques

• Output power: 20 kW
• Rated current (3 phase): 32 A
• Voltage: 380-480 V
• Frequency: 50-60 Hz
• Weight (complete product w/o side packed articles): 25.8 kg
• Variant designation (example): POWER PACK PP 492 380-480 V | 50-60 Hz | CE | 5-pin
• Pins: 4 or 5 (5-pin shown/selected)
• Art nr (article number): 970 45 59‑01
