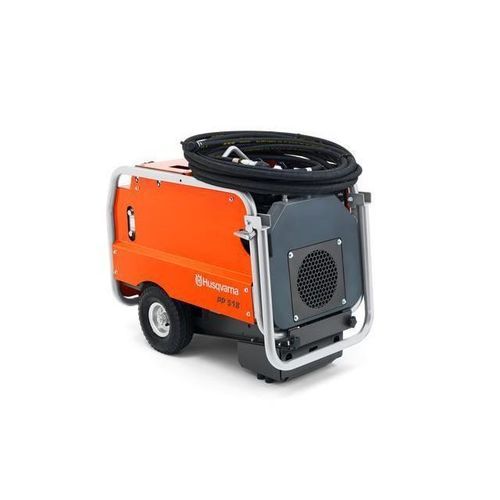

Hydraulic power unit with combustion engine PP 518

gasoline enginefor power toolsfor construction site

Product description
PP 518 is a petrol-powered hydraulic power pack designed to supply portable hydraulic tools such as core drill motors, ring saws and power cutters. It is optimized for jobsite mobility and continuous operation where reliable hydraulic flow and cooling are required.

Key features

• Smart fuel-saving system – Automatic power-on-demand that reduces fuel consumption; adjustable for different tools and hose lengths and can be disabled when constant power is required.
• Compact transport design – Small footprint with large pneumatic tyres and a foldable handle for easy handling and storage.
• Precise flow control – Accurate hydraulic flow adjustment to maximize performance of connected equipment.
• Doorway-friendly hose routing – Front-panel hydraulic hose connection simplifies passage through openings and confined spaces.
• Adjustable handle – Improves operator ergonomics and enables more compact storage.
• Enhanced durability and cooling – 15-litre hydraulic oil reservoir and a 23 cm cooling fan to maintain oil temperature and extend service life under heavy load.
• Mobile positioning – Heavy-duty single-axle trolley for stable transport and site positioning.

Compatible equipment

• DM 406 H (core drill motor)
• K 3600 MK II (ring saw)
• K 2500 (power cutter)

Technical specifications

• Engine power (as rated by the engine manufacturer): 10.42 kW
• Hydraulic oil flow: 40 l/min
• Hydraulic pressure, max: 110 bar
• Weight (complete product without side packed articles): 127 kg
• Hydraulic oil reservoir: 15 litres
• Cooling fan diameter: 23 cm
• Article number (Art nr): 967 15 36-02
