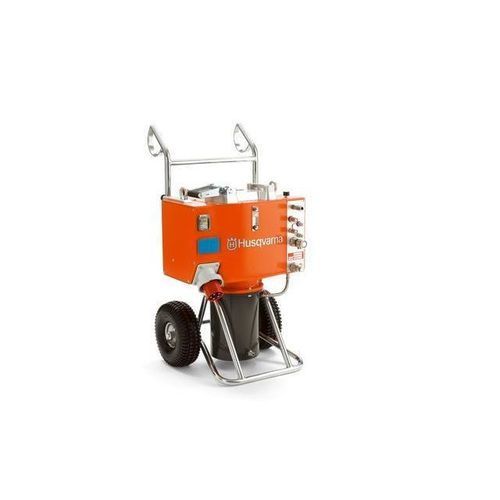

Electrically-powered hydraulic power unit PP 455 E

electric motorfor machinesportable

Product description
The electrically powered hydraulic unit PP 455 E is developed for use with the CS 2512 wire saw. It features a water-cooled electric motor that ensures continuous sawing performance and is mounted beneath the oil tank to provide a low centre of gravity and stable operation.

Key specifications

• Hydraulic oil flow: 65 l/min
• Hydraulic pressure, max: 230 bar
• Rated current: 63 A

Benefits

• Optimised machine life and consistent power delivery
• Adjustable, vertically adjustable handles for transport and operation
• Easy hose connection with pressure compensation system
• 230 V power outlet for peripheral equipment (with appropriate system)

Features & details

• Specifically developed for CS 2512 wire saw (fits CS 2512)
• Water-cooled electric motor for efficient sawing
• Motor mounted beneath tank for low centre of gravity and improved stability
• Large 15-litre oil reservoir and 23 cm fan for hydraulic oil cooling
• Pressure compensation system for simplified hose connection
• Adjustable handles; can be laid down on handles during transport and operation
• Mounted on heavy-duty single-axle trolley for easy transportation and positioning
• Flexible power configuration — operable on both 32 A and 63 A fuses
• 230 V power outlet available when using a 5-pin, 3-phase system
• Water-cooled heat exchanger to maintain low operating fluid temperature

Technical specifications

• Model: PP 455 E
• Hydraulic oil flow: 65 l/min
• Hydraulic pressure, max: 230 bar
• Rated current: 63 A
• Cooling: water-cooled electric motor; water-cooled heat exchanger
• Oil reservoir: 15 litres
• Cooling fan: 23 cm fan
• Power outlet: 230 V (for peripheral equipment, requires appropriate fuse/system)
• Designed for: CS 2512 wire saw
• Transport: heavy-duty single-axle trolley; adjustable handles; can be laid down on handles
• Flexible power: operable on 32 A and 63 A fuses
• Article number (Art nr): 965 15 66-02
