3-axis machining center VESTA-1000+
verticalcolumn typeBT 40

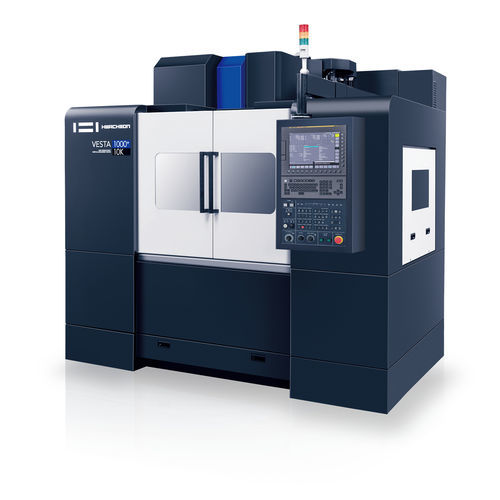

3-axis machining center - VESTA-1000+ - Hwacheon - vertical / column type / BT 40
3-axis machining center - VESTA-1000+ - Hwacheon - vertical / column type / BT 40
3-axis machining center - VESTA-1000+ - Hwacheon - vertical / column type / BT 40 - image - 2
3-axis machining center - VESTA-1000+ - Hwacheon - vertical / column type / BT 40 - image - 3
3-axis machining center - VESTA-1000+ - Hwacheon - vertical / column type / BT 40 - image - 4
3-axis machining center - VESTA-1000+ - Hwacheon - vertical / column type / BT 40 - image - 5
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
column type
Spindle mount
BT 40, CAT40, SK40
Other characteristics
high-productivity, high-precision
X travel

1,000 mm
(39.37 in)

Y travel

550 mm
(21.65 in)

Z travel

500 mm
(19.69 in)

Rotational speed

10,000 rpm, 12,000 rpm, 15,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)

Power

11 kW, 18.5 kW
(14.96 hp, 25.15 hp)

Work feed X-axis

36,000 mm/min
(23.62 in/s)

Work feed Y-axis

36,000 mm/min
(23.62 in/s)

Tool weight (max)

8 kg
(17.6 lb)

Weight

5,040 kg
(11,111.3 lb)

Overall length

2,642 mm
(104 in)

Overall width

2,850 mm
(112.2 in)

Overall height

2,420 mm
(95.3 in)

Description

VESTA-1000+ ensures high productivity and high precision based on a machine structure optimized for parts machining. Cooling of the spindle and frames minimizes thermal deformation to ensure high precision during long-time machining. Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
