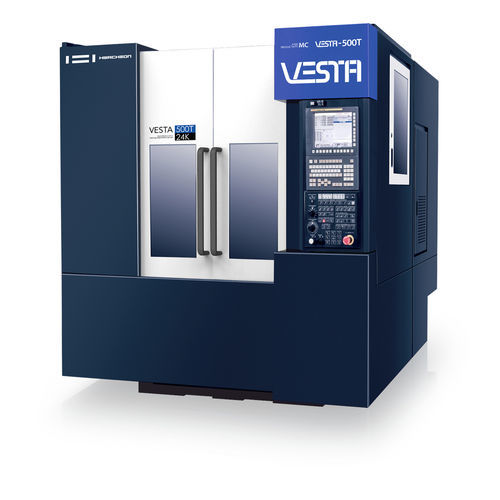

4-axis CNC machining center VESTA-500Tvertical2-spindleBBT30
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Number of spindles
- 2-spindle
- Spindle mount
- BBT30
- Number of tool stations
- 24 tools
- Associated functions
- milling
- Other characteristics
- high-speed, high-performance, high-precision, high-productivity
- X travel
520 mm
(20.47 in)- Y travel
400 mm
(15.75 in)- Z travel
380 mm
(14.96 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
2.2 kW, 11 kW
(2.99 hp, 14.96 hp)- Work feed X-axis
60,000 mm/min
(39.37 in/s)- Work feed Y-axis
60,000 mm/min
(39.37 in/s)- Table load capacity
380 kg
(838 lb)- Tool weight (max)
3 kg
(6.6 lb)- Weight
7,500 kg
(16,534.67 lb)- Overall length
3,337 mm
(131.4 in)- Overall width
1,950 mm
(76.8 in)- Overall height
2,310 mm
(90.9 in)
Description
VESTA-500T provides the best production speed and quality for small parts machining through a symmetrical independent Z-Axis twin spindle structure.
High-productivity and accuracy is ensured with a high performance in-house designed spindle. Cooling of the spindle and frames minimizes thermal displacement to ensure high precision during long-time machining.
Hwacheon software installed on the machine optimizes high-speed feed and precision, provides distinguishable machining quality compared to existing machines.
