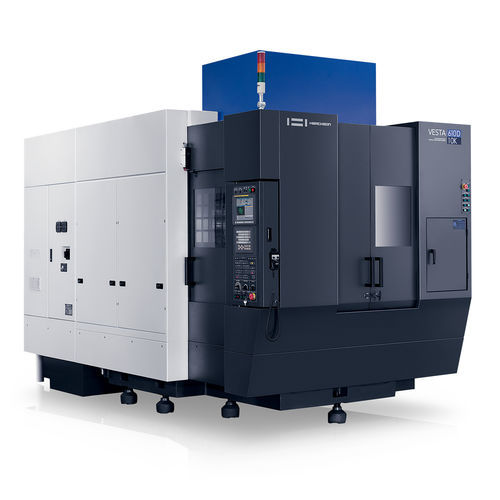

3-axis CNC machining center VESTA-610DverticalBT 40high-precision
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Other characteristics
- high-precision, high-productivity
- X travel
610 mm
(24.02 in)- Y travel
430 mm
(16.93 in)- Z travel
570 mm
(22.44 in)- Rotational speed
10,000 rpm, 12,000 rpm, 15,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Power
Max.: 20.9 kW
(28.42 hp)Min.: 7.5 kW
(10.2 hp)- Work feed X-axis
40,000 mm/min
(26.25 in/s)- Work feed Y-axis
40,000 mm/min
(26.25 in/s)- Table load capacity
300 kg
(661 lb)- Tool weight (max)
8 kg
(17.6 lb)- Weight
8,500 kg
(18,739.29 lb)- Overall length
3,980 mm
(156.7 in)- Overall width
2,135 mm
(84.1 in)- Overall height
2,691 mm
(105.9 in)
Description
VESTA-610D shortens non-cutting time by applying a dual table which enables material setting during machining.
Cooling of the spindle and frames minimizes thermal displacement to ensure high precision during long-time machining.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
