Conventional lathe HL-580 series
horizontal2-axisuniversal

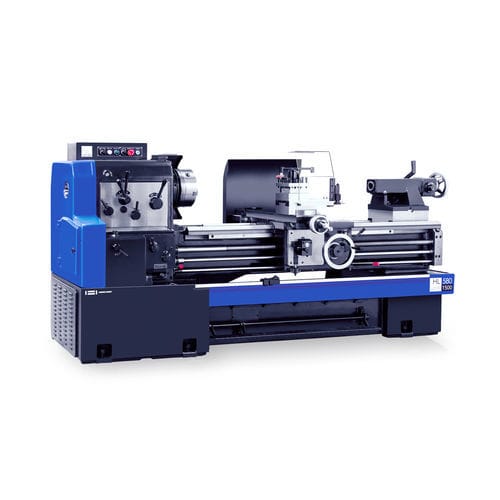

Conventional lathe - HL-580 series - Hwacheon - horizontal / 2-axis / universal
Conventional lathe - HL-580 series - Hwacheon - horizontal / 2-axis / universal
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Number of axes
2-axis
Structure
universal
Spindle mount
D1-8
Performance
precision, high-performance
Diameter

580 mm
(22.83 in)

Spindle speed

Max.: 150 rpm
(942.478 rad.min-1)

Min.: 28 rpm
(175.929 rad.min-1)

Axe X

300 mm
(12 in)

Axe Z

170 mm
(7 in)

Nominal power

7.5 kW
(10.2 hp)

Overall lenght

3,000 mm
(118 in)

Overall width

1,220 mm
(48 in)

Overall height

1,500 mm
(59 in)

Weight

2,930 kg, 3,260 kg
(6,460 lb, 7,187 lb)

Description

HL-580 is a manual lathe that has been trusted and loved for a long time based on precision and best performance. HL-580 provides a product line-up and optional specifications that can respond to various customer needs, and maximizes user convenience for easy and convenient use.
