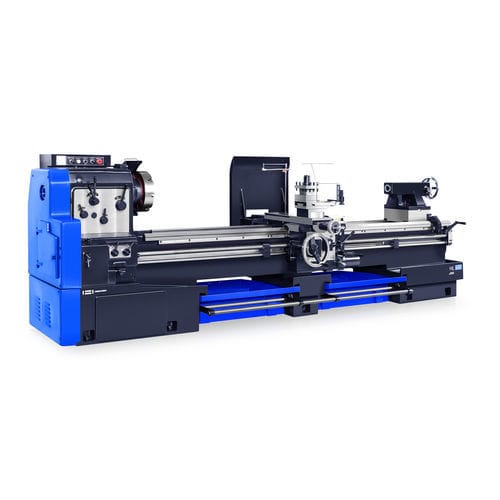

Conventional lathe HL-720 series horizontal2-axisD1-8
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Spindle mount
- D1-8
- Other characteristics
- precision, high-performance
- Diameter
720 mm
(28.35 in)- Spindle speed
Max.: 1,205 rpm
(7,571.238 rad.min-1)Min.: 27 rpm
(169.646 rad.min-1)- Axe X
390 mm
(15 in)- Axe Z
170 mm
(7 in)- Overall lenght
3,730 mm, 4,730 mm
(147 in, 186 in)- Overall width
1,544 mm
(61 in)- Overall height
1,500 mm
(59 in)- Weight
3,670 kg, 3,800 kg
(8,091 lb, 8,378 lb)
Description
HL-720 is a manual lathe that has been trusted and loved for a long time based on precision and best performance.
HL-720 provides a product line-up and optional specifications that can respond to various customer needs, and maximizes user convenience for easy and convenient use.
