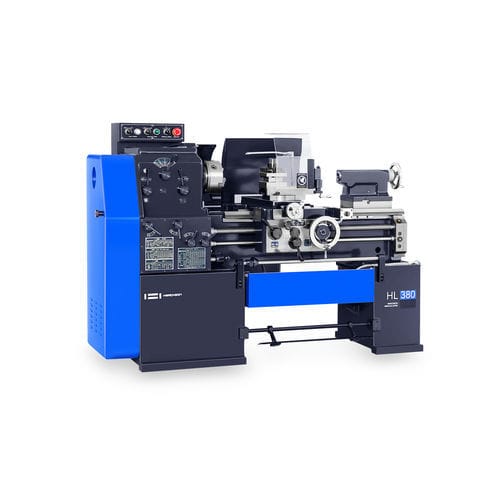

Conventional lathe HL-380
horizontal2-axisA2-5

Conventional lathe - HL-380 - Hwacheon - horizontal / 2-axis / A2-5
Conventional lathe - HL-380 - Hwacheon - horizontal / 2-axis / A2-5
Conventional lathe - HL-380 - Hwacheon - horizontal / 2-axis / A2-5 - image - 2
Conventional lathe - HL-380 - Hwacheon - horizontal / 2-axis / A2-5 - image - 3
Conventional lathe - HL-380 - Hwacheon - horizontal / 2-axis / A2-5 - image - 4
Conventional lathe - HL-380 - Hwacheon - horizontal / 2-axis / A2-5 - image - 5
Conventional lathe - HL-380 - Hwacheon - horizontal / 2-axis / A2-5 - image - 6
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Number of axes
2-axis
Spindle mount
A2-5
Performance
precision
Diameter

400 mm
(15.75 in)

Spindle speed

Max.: 1,800 rpm
(11,309.734 rad.min-1)

Min.: 45 rpm
(282.743 rad.min-1)

Axe X

250 mm
(10 in)

Nominal power

2 kW, 3 kW
(2.7 hp, 4.1 hp)

Overall lenght

1,960 mm
(77 in)

Overall width

1,000 mm
(39 in)

Overall height

1,350 mm
(53 in)

Weight

1,240 kg
(2,734 lb)

Description

HL-380 is a manual lathe that has been trusted and loved for a long time based on precision and best performance. HL-380 provides a product line-up and optional specifications that can respond to various customer needs, and maximizes user convenience for easy and convenient use.
