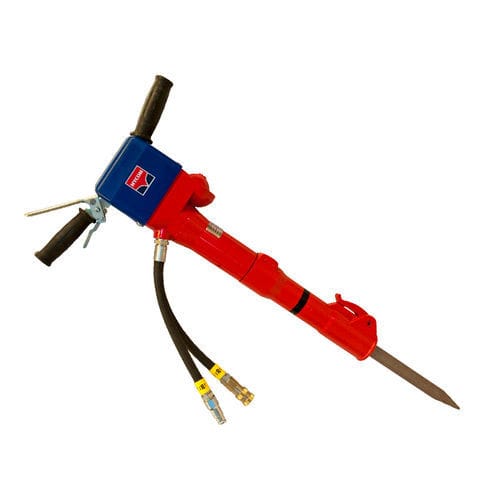

Concrete breaker HH20

Overview
The HH20 is a compact handheld hydraulic breaker designed for breaking concrete, asphalt and frozen ground. At 22 kg it delivers high productivity while remaining easy to position and operate on construction and maintenance sites.

Applications & users

• Road and civil engineering works
• Municipal maintenance and utilities
• Railway and infrastructure repairs
• Rental fleets and contractors
• Military and emergency operations

Key features

• Compact, lightweight design (22 kg) for improved manoeuvrability
• Vibration-reduced handle to increase operator comfort
• Performance comparable to many 30-kg electric breakers
• Two available tool shank sizes (hex 25 x 108 mm and hex 28 x 160 mm)
• Simple connection to hydraulic power sources

Technical data

• Model: HH20
• Item no. HH20 (hex 25 x 108 mm): 1010020
• Item no. HH20 (hex 28 x 160 mm): 1010720
• Weight: 22 kg
• Oil flow: 20 L/min
• Working pressure: 110 bar
• Maximum pressure: 160 bar
• Blow frequency: 1,480 blows/min (≈24.7 Hz)
• Blow energy: 60 J
• Sound power level (LwA): 106 dB
• Vibration level (3-axis): 6.8 m/s²
• CE approval: yes

Compatibility & maintenance

• Connectable to HYCON power packs with 20 L/min option and to other hydraulic power sources providing the specified flow and pressure
• Use recommended chisels and regular lubrication for long service life
• Suitable for rental due to easy serviceability and common spare parts
