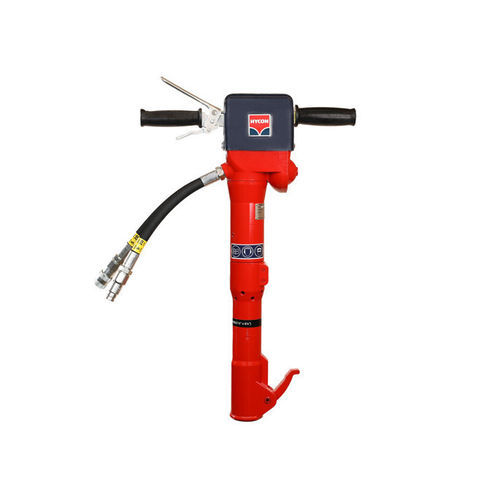

Concrete breaker HH20 Underwater

Product description
The HYCON HH20 underwater is a compact, handheld hydraulic breaker engineered for underwater demolition tasks such as concrete breaking, rock chiselling and coral removal. With a low service weight it is optimized for diver-operated and confined-space applications while delivering consistent impact performance.

Features

• Rubber-based, vibration-reduced underwater handle for improved operator comfort
• Compatible with 20 LPM power packs and other hydraulic power sources for flexible deployment

Technical data

• Model variants / item numbers: HH20 (hex 25 x 108 mm) – 1010020-01; HH20 (hex 28 x 160 mm) – 1010427-01; HH20 (hex 32 x 160 mm) – 1010120-01
• Weight: 22 kg
• Oil flow: 20 LPM
• Working pressure: 110 bar
• Max pressure: 160 bar
• Blow frequency: 1480 Hz
• Blow energy: 60 joule
• Sound power level LWa: 106 dB
• Vibration level (3 axis): 6.8 m/s2
• Designed for: underwater breaking of concrete, rock and coral removal
• Operator comfort: rubber-based underwater vibration-reduced handle
• Power source compatibility: connectable to 20 LPM power packs and other hydraulic sources
• CE approval: CE
