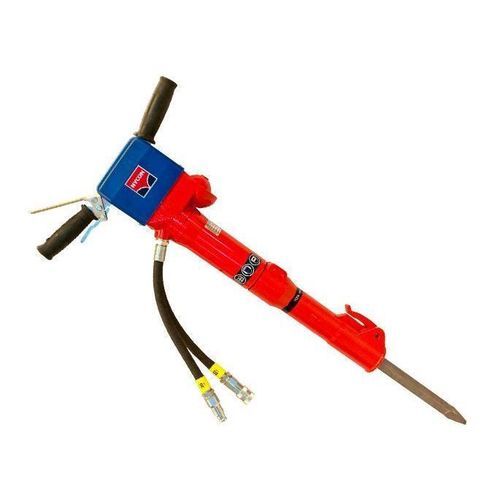

Concrete breaker HH25

Overview
HYCON HH25 is a handheld, compact hydraulic breaker delivering high performance relative to its weight. It is engineered for heavy-duty breaking tasks such as reinforced concrete, asphalt and frozen ground. The HH25 comes standard with a HYCON vibration-reduced handle and is available in 20 and 30 LPM flow versions. It connects to HPP series units and other hydraulic power sources. Standard tool size is hex 32 x 160 mm; other tool sizes available on request.

Applications

• Breaking reinforced concrete
• Breaking asphalt
• Breaking frozen ground
• Use by contractors, rental fleets, military units, supply and asphalt companies

Technical data
Item no., hex 28 x 160 mm, 30 LPM: 1010906
Item no., hex 32 x 152 mm, 20 LPM: 1010225
Item no., hex 32 x 160 mm, 20 LPM: 1010025
Item no., hex 32 x 160 mm, 30 LPM: 1010125
Weight [kg]: 25.3 (1010906); 25.8 (1010025, 1010125, 1010225)
Oil flow [LPM]: 20 / 30
Working pressure [bar]: 120
Max. pressure [bar]: 160
Blow frequency [Hz]: 1380
Blow energy [J]: 85 (20 LPM) / 95 (30 LPM)
Sound power level LWa [dB]: 108
Vibration level, 3-axis [m/s2]: 9.4
Certifications: CE approval

Characteristics / Technical specifications

• Model: HH25
• Standard tool size: hex 32 x 160 mm
• Available tool sizes: hex 28 x 160 mm; hex 32 x 152 mm; hex 32 x 160 mm
• Oil flow: 20 or 30 LPM
• Working pressure: 120 bar
• Maximum pressure: 160 bar
• Blow frequency: 1380 Hz
• Blow energy: 85 J (20 LPM) / 95 J (30 LPM)
• Weight: 25.3 kg (1010906); 25.8 kg (1010025, 1010125, 1010225)
• Sound power level LWa: 108 dB
• Vibration level (3-axis): 9.4 m/s2
• Vibration-reduced handle: standard
• Compatibility: connects to HPP series and other hydraulic power sources
• Certifications: CE approval
