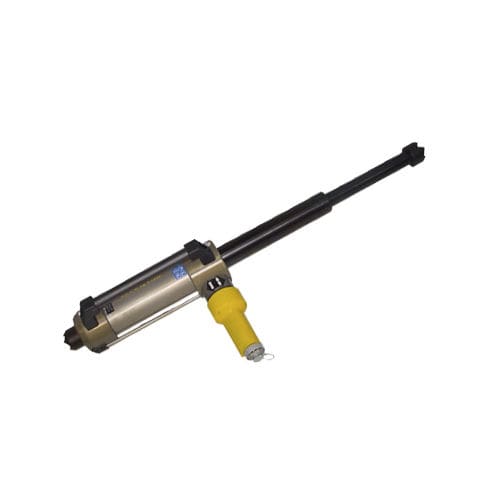

Hydraulic cylinder VHETS 575 series
telescopicdouble-actinglight alloy

hydraulic cylinder
hydraulic cylinder
hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Technology
telescopic
Configuration
double-acting
Material
light alloy
Protection class
water-resistant
Stroke

575 mm
(22.638 in)

Force

Min.: 119 kN

Max.: 260 kN

Description

Unit is made of hardened high strength light alloy. Can be used in wet conditions. Tool comprises : 1 Double action cylinder 1 Ergonomically shaped control handle with integral safety device and piloting check valves 1 Set of 0.5 meter long hoses, automatic locking antipollution HP quick action couplers with metal protection plugs. Universal swivel fitting Pressure relief valve for hose on coupler end OPTION: Horizontal control handle support Characteristics Max. force on first piston : 260 kN Max. force on second piston : 119 kN Max. force on third piston : - Stroke A : 575 mm Minimum length B : 515 mm Maximum length C : 1090 mm Weight : 15.45 kg Dimensions (mm) B x H x D : 515 x 316 x 178 Working oil : 465 cc Compliance EN 13204 TR : TR 260/316-119/259-15.45 Operating pressure : 700 bar
