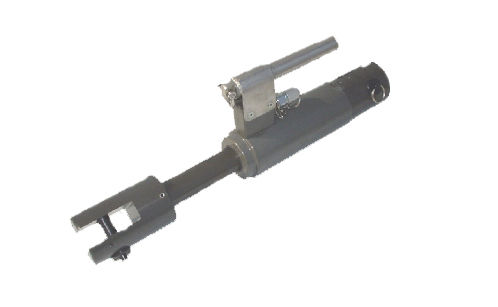

Hydraulic cylinder VHT 150
single-acting

hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Configuration
single-acting
Stroke

120 mm
(4.724 in)

Force

78 kN

Description

Load–bearing hydraulic cylinders VHT 150 Single action aluminium alloy cylinder, 120mm stroke (piston). Tensile force 78 KN. Maximum operating pressure 700 bar. Comprises of : 1 single action hydraulic cylinder onto which a staying strap with a 20 mm hole is screwed, fitted with a captive pin 1 Carrying handle fitted with a gripping / handling ring 1 Aluminium draw-bar, travel length 120 mm onto which a staying strap with a 20 mm hole is screwed, fitted with a captive pin High pressure quick connect coupling and safety ring, metallic protection caps. The cylinder functions as load bearing, either as a cable joint in line or anchoring to the pylon Sold in a reinforced aluminium case containing 2 cylinders

Catalogs

No catalogs are available for this product.

See all of HYDR'AM‘s catalogs
