Characteristics
- Technology
- axial piston
- Other characteristics
- fixed-displacement, bent-axis
- Torque
Min.: 335.9 Nm (247.75 ft.lb)
Max.: 638.8 Nm (471.15 ft.lb)
- Rotational speed
Min.: 4,000 rpm (25,132.74 rad.min-1)
Max.: 5,000 rpm (31,415.93 rad.min-1)
- Pressure
400 bar (5,802 psi)
- Displacement
Min.: 56 cm³ (2 US fl oz)
Max.: 107 cm³ (4 US fl oz)
Description

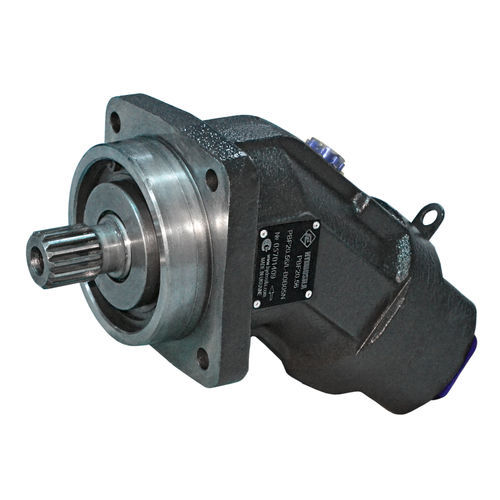

The fixed displacement bent axis axial-piston motors from Hydrosila is equipped with angle of 40 cylinder block. The hydraulic motors converted the fluid flow into rotating speed which is efficient to the flow that is supplied to it.
The weight of the device is 17 kg and the rotating torque at 400 bar is 356.
