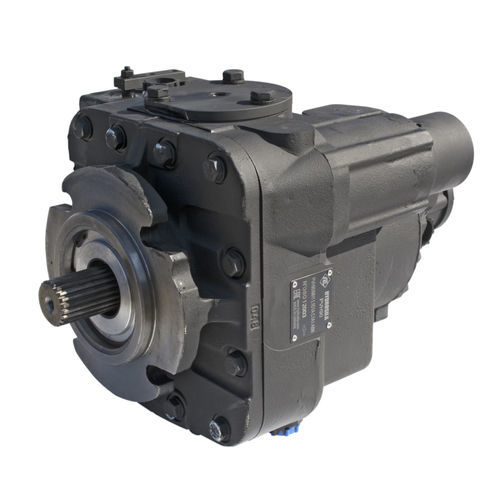

Hydraulic axial piston pump PVS seriesclosed circuithigh-efficiencylow-noise level
Add to favorites
Compare this product
Characteristics
- Type
- axial piston
- Applications
- closed circuit
- Other characteristics
- high-pressure, high-efficiency, low-noise level, variable-displacement, hydrostatic
- Pressure
357 bar, 420 bar
(5,178 psi, 6,092 psi)- Flow rate
113.5 l/min, 151.8 l/min, 186.3 l/min, 218.9 l/min
(29.98 us gal/min, 40.1 us gal/min, 49.22 us gal/min, 57.83 us gal/min)- Speed
1,500 rpm
(9,425 rad.min-1)- Weight
45 kg, 55 kg, 63 kg, 78 kg
(99.21 lb, 121.25 lb, 138.89 lb, 171.96 lb)- Power
18.7 kW, 29 kW, 39.3 kW, 63.3 kW
(25.42 hp, 39.43 hp, 53.43 hp, 86.06 hp)
Description
- Displacement 33...90 cm
- Hydromechanical and electrical 3-positioned control
Variable displacement axial-piston pump for hydraulic systems with closed circuit. They are used in hydrostatic transmission of stroke drive or operating equipment of combines, road and construction mobile machines.
Application:
- Combines
- Concrete mixer trucks
- Road rollers
The pumps PVS series are a cost competitive solution for a variety of applications.Time-proven design, based on the Sauer 20 series, is reliable and durable in the field.
Characteristics:
- Swashplate design.
- High volumetric efficiency.
- Build-in charge pump.
- Smooth flow direction change.
- Bimetal bearing plate has a high wear-resistance.
- Lightweight piston provides reliability in operation at high speeds.
- Mounting flanges are manufactured according to international SAE standard.
- Tapered roller bearings enable the pump shaft to withstand high radial and axial loads.
- Shaft seals (face seal or lip seal) provide reliable external tightness.
Control systems:
- hydromechanical
- electrical 3-positioned 12/24B
