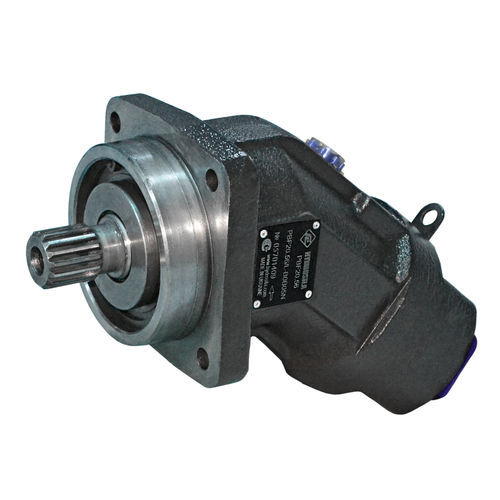

Hydraulic axial piston pump PBF20 series
cast ironopen circuitstandard

hydraulic axial piston pump
hydraulic axial piston pump
Add to favorites
Compare this product


Characteristics

Type
axial piston
Material
cast iron
Applications
open circuit
Other characteristics
high-pressure, high-efficiency, low-noise level, standard, fixed-displacement, heavy-duty, radial, bent-axis, wear-resistant
Pressure

400 bar, 450 bar
(5,802 psi, 6,527 psi)

Flow rate

Min.: 22 l/min
(5.81 us gal/min)

Max.: 256 l/min
(67.63 us gal/min)

Speed

Min.: 400 rpm
(2,513 rad.min-1)

Max.: 3,750 rpm
(23,562 rad.min-1)

Weight

18 kg, 23 kg, 32 kg
(39.68 lb, 50.71 lb, 70.55 lb)

Power

Min.: 75 kW
(101.97 hp)

Max.: 192 kW
(261.05 hp)

Description

Displacement 56…107 ccm Fixed displacement bent axis axial-piston pumps in high-strength cast iron casing. Reliable and efficient design has proven itself to be good at heavy-duty applications. These multi-operated pumps are used in construction, forestry and agricultural machinery, municipal and loading equipment, mining and oil and gas sector equipment. Application: - Construction machinery - Agricultural machinery - Forestry machines - Load lifting equipment - Municipal machines Fixed displacement bent axis axial-piston pumps in high-strength cast iron casing. Reliable and efficient design makes them an ideal solution for hydraulic systems characterized by high loads and temperature fluctuations. Characteristics: - Bent axis design, inclination angle is 40°. - High hydromechanical efficiency. - High-strength cast iron body. - The shaft seal has a high resistance to high temperatures. - Bimetal cylinder block of the pumping unit has a high wear-resistance. - Tapered roller bearings, allow the pump shaft to withstand high radial and axial loads. - Conical pistons with compressive rings. - Smooth operation over the entire speed range. - Mounting flanges according to ISO 3019/2. - Drive shafts according to DIN, SAE and GOST standard.
