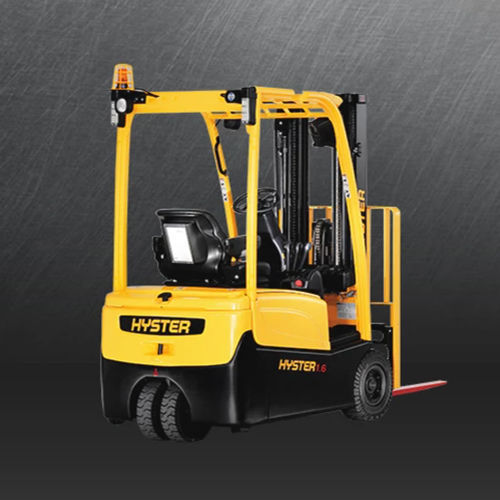

Electric forklift J1.5-2.0XNT

ride-onindooroutdoor

Overview
The J1.5-2.0XNT is a robust, energy-efficient three-wheel front-drive electric counterbalanced forklift designed for medium to heavy-duty indoor and outdoor operations. Available in multiple wheelbase and battery configurations, it balances manoeuvrability, uptime and predictable operating costs.

Key features

• 3-wheel front-drive layout for tight-aisle manoeuvrability
• Model family: J1.5-2.0XNT (multiple wheelbases)
• Load capacities from 1,500 kg to 2,000 kg
• Battery options: 48V with 500Ah, 625Ah or 750Ah
• Vehicle System Manager (VSM) with onboard diagnostics

Robust design
Durable chassis construction with steel hoods and reinforced side covers reduces impact damage and extends service intervals. Traction motors sealed to IP54 and control protection to IP65 limit ingress of water and dust, lowering the risk of unexpected failures.

Precise handling
Dual front-wheel AC drive motors deliver smooth acceleration, high torque and reliable travel performance. Regenerative braking and selectable ECO-eLo or HiP modes allow operators to prioritise runtime or performance according to application needs.

Operator-friendly design
Ample foot space, intuitive pedal layout, low step-in height and an infinitely adjustable steering column (gas-spring assist) provide ergonomic access and reduced operator fatigue. Memory tilt and optional height adjustment speed operator return-to-position on long shifts.

Vehicle System Manager (VSM)
VSM supplies diagnostic and maintenance data to the dash display for proactive service planning and faster fault diagnosis. AC traction and hoist motors reduce mechanical wear and contribute to longer reliable service intervals. The automatic park brake includes a manual release under the floor plates for service access.

Less downtime
Brushless AC motors and quality components reduce service frequency; a full electrical service is typically required after 1,000 hours. Thermal protection on traction motors and an advanced cooling system safeguard components. Onboard diagnostics accelerate troubleshooting and minimise repair time.

Models and Specifications (table)
J1.5XNT (SWB) | 1500 kg | 500 mm | 5500 mm | 1476 mm | 48V / 500Ah | 2971 kg
J1.6XNT (LWB) | 1600 kg | 500 mm | 5500 mm | 1676 mm | 48V / 750Ah | 1494 kg
J1.6XNT (SWB) | 1600 kg | 500 mm | 5500 mm | 1476 mm | 48V / 500Ah | 1290 kg
J1.6XNT (MWB) | 1600 kg | 500 mm | 5500 mm | 1575 mm | 48V / 625Ah | 1386 kg
J1.8XNT (LWB) | 1800 kg | 500 mm | 5500 mm | 1676 mm | 48V / 750Ah | 1494 kg
J1.8XNT (MWB) | 1800 kg | 500 mm | 5500 mm | 1575 mm | 48V / 625Ah | 1386 kg
J2.0XNT (MWB) | 2000 kg | 500 mm | 5500 mm | 1575 mm | 48V / 625Ah | 1386 kg
J2.0XNT (LWB) | 2000 kg | 500 mm | 5500 mm | 1676 mm | 48V / 750Ah | 1494 kg

Technical specifications

• Category: 3-wheel front-drive electric counterbalanced forklift
• Model family: J1.5-2.0XNT
• Applications: warehouses, logistics centres, retail, mixed indoor/outdoor use
• Rated capacities: 1,500–2,000 kg (model dependent)
• Load centre: 500 mm
• Max lift height: up to 5,500 mm
• Turning radius: 1,476–1,676 mm (depending on wheelbase)
• Battery options: 48V / 500Ah, 625Ah, 750Ah
• Protection: IP54 traction motors; IP65 control protection
• Drive: dual front-wheel AC drive motors; brushless AC technology
• Onboard systems: Vehicle System Manager (VSM) for diagnostics and maintenance data
