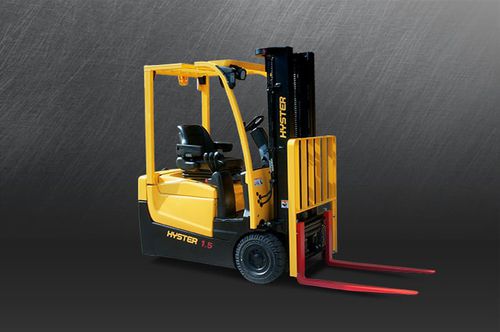

3-wheel forklift A1.3-1.5XNTelectricride-onfor warehouse
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling, for warehouse
- Other characteristics
- counterbalanced, compact, 3-wheel, for medium loads, light-duty
- Carrying capacity
1,300 kg
(2,866 lb)- Lifting height
5,500 mm
(216.54 in)- Overall width
996 mm, 1,056 mm
(39.2 in, 41.6 in)- Overall length
2,724 mm, 2,778 mm
(107.2 in, 109.4 in)- Load center distance
500 mm
(19.7 in)- Weight without load
2,700 kg, 2,905 kg
(5,952.5 lb, 6,404.4 lb)- Axle loading with maximum load front
3,319 kg, 3,755 kg
(7,317.1 lb, 8,278.4 lb)- Axle loading with maximum load rear
631 kg, 649 kg
(1,391.1 lb, 1,430.8 lb)- Axle loading without load front
1,184 kg, 1,240 kg
(2,610.3 lb, 2,733.7 lb)- Axle loading without load rear
1,516 kg, 1,665 kg
(3,342.2 lb, 3,670.7 lb)- Track width front
836 mm, 896 mm
(32.9 in, 35.3 in)- Height of mast when lowered
2,230 mm
(87.8 in)- Free lift
100 mm
(3.9 in)- Overall height with mast raised
3,868 mm
(152.3 in)- Height to top of overhead guard
1,980 mm, 2,060 mm
(78 in, 81.1 in)- Seat height
926 mm
(36.5 in)- Tow couplig height
540 mm
(21.3 in)- Length to fork face
1,724 mm, 1,778 mm
(67.9 in, 70 in)- Fork carriage width
907 mm
(35.7 in)- Ground clearance under mast with load
88 mm
(3.5 in)- Ground clearance at center of wheelbase with load
85 mm
(3.3 in)- Turning circle radius
1,398 mm
(55 in)- Travel speed
12 km/h, 12.5 km/h
(7.5 mph, 7.8 mph)- Lifting speed
0.3 m/s, 0.51 m/s
(0.984 ft/s, 1.673 ft/s)- Lowering speed
0.46 m/s, 0.5 m/s
(1.509 ft/s, 1.64 ft/s)- Rated drawbar pull
Max.: 6,246 N
Min.: 942 N
- Gradeability
Max.: 24.3 %
Min.: 7.3 %
- Rated output
4.7 kW, 6 kW
(6.4 hp, 8.2 hp)- Maximum operating pressure
155 bar
(2,248.1 psi)- Oil flow
20 l/min
(5.3 us gal/min)- Noise level
59 dB
Description
Built to perform in confined spaces, the A1.3-1.5XNT delivers impressive power and reliability without breaking the bank thanks to its economic design.
•Strong chassis construction
•Efficient handling
•Operator-friendly design
•Low cost of ownership
•Long service life
THIS COMPACT, 24V, REAR-WHEEL DRIVE FORKLIFT TRUCK PROVIDES THE ECONOMY, PERFORMANCE, MANOEUVRABILITY AND RELIABILITY REQUIRED IN TIGHT APPLICATIONS
THE MOST COMPACT TRUCK WE OFFER IN ITS CLASS
This compact, 24V, rear-wheel drive forklift truck provides the economy, performance, manoeuvrability and reliability required in tight applications,
With both a low acquisition cost and low cost of operation, the A1.3-1.5XNT is an economy truck that delivers powerful results in tight warehouse operations, or when unloading containers and lorries.
STRONG CHASSIS CONSTRUCTION
The truck’s strong chassis construction provides excellent durability and stability, boosting driver confidence and enhancing productivity. A steel hood and durable side covers provide increased resistance to impact damage and general wear and tear.
