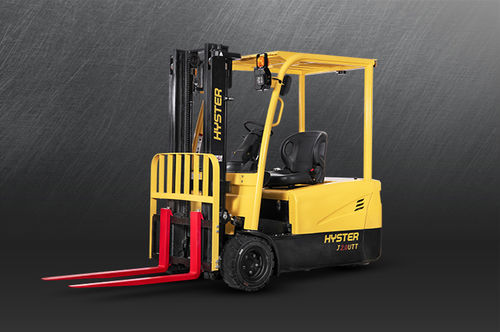

3-wheel forklift J1.6-2.0UTT(L)electricride-ontransport
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- loading, unloading, transport, storage
- Other characteristics
- counterbalanced, pneumatic tire, 3-wheel, light-duty
- Carrying capacity
1,600 kg, 1,800 kg, 2,000 kg
(3,527.4 lb, 3,968.3 lb, 4,409.2 lb)- Lifting height
6,000 mm
(236.22 in)- Overall width
1,084 mm, 1,140 mm
(42.7 in, 44.9 in)- Overall length
2,894 mm, 3,153 mm
(113.9 in, 124.1 in)- Load center distance
500 mm
(19.7 in)- Weight without load
3,120 kg, 3,190 kg, 3,380 kg
(6,878.4 lb, 7,032.7 lb, 7,451.6 lb)- Axle loading with maximum load front
4,010 kg, 4,420 kg, 4,870 kg
(8,840.5 lb, 9,744.4 lb, 10,736.5 lb)- Axle loading with maximum load rear
510 kg, 580 kg, 660 kg
(1,124.4 lb, 1,278.7 lb, 1,455.1 lb)- Axle loading without load front
1,480 kg, 1,500 kg, 1,580 kg
(3,262.8 lb, 3,306.9 lb, 3,483.3 lb)- Axle loading without load rear
1,640 kg, 1,690 kg, 1,810 kg
(3,615.6 lb, 3,725.8 lb, 3,990.4 lb)- Track width front
933 mm, 952 mm
(36.7 in, 37.5 in)- Track width rear
186 mm
(7.3 in)- Height of mast when lowered
1,990 mm, 1,992 mm
(78.3 in, 78.4 in)- Free lift
35 mm, 54 mm
(1.4 in, 2.1 in)- Overall height with mast raised
4,000 mm, 4,030 mm
(157.5 in, 158.7 in)- Height to top of overhead guard
2,002 mm, 2,004 mm
(78.8 in, 78.9 in)- Seat height
965 mm
(38 in)- Tow couplig height
445 mm, 485 mm
(17.5 in, 19.1 in)- Length to fork face
1,974 mm, 2,084 mm
(77.7 in, 82 in)- Fork carriage width
950 mm, 951 mm
(37.4 in, 37.4 in)- Ground clearance under mast with load
88 mm, 89 mm
(3.5 in, 3.5 in)- Ground clearance at center of wheelbase with load
95 mm, 96 mm
(3.7 in, 3.8 in)- Turning circle radius
1,601 mm, 1,716 mm
(63 in, 67.6 in)- Travel speed
14 km/h, 16 km/h
(8.7 mph, 9.9 mph)- Lifting speed
310 mm/s, 349 mm/s, 352 mm/s, 500 mm/s
- Lowering speed
411 mm/s, 425 mm/s, 485 mm/s
- Rated drawbar pull
Max.: 15.5 N
Min.: 10 N
- Gradeability
20 %, 30 %
- Rated output
11 kW
(15 hp)- Maximum operating pressure
145 bar, 175 bar
(2,103 psi, 2,538.2 psi)- Oil flow
38 l/min
(10 us gal/min)- Noise level
64.8 dB, 69.6 dB
Description
The reliable, straight-forward and affordable solution. Every time.
•Operator-friendly
•Easy to maintain
•Low cost of ownership
•High visibility mast
RIGHT TRUCK. RIGHT PRICE. RIGHT APPLICATION.
Hyster® J1.6-2.0UTT electric counterbalance forklift trucks are easy to use, simple tomaintain and deliver exceptional reliability at every turn.
Available with lead acid batteries, lift heights up to 6000mm, lift capacities from 1,600kg up to 2,000kg, travel speeds up to 16km/h and a range of standard features and options.
OPERATOR-FRIENDLY
The operator compartment offers a practical and comfortable working environment with controls within easy reach to help reduce operator fatigue. Generous foot space, intuitive pedal arrangement and low step and hood heights providing a comfortable working space.
This means on/off access and driving in reverse causes less fatigue over long shifts. The steering column is infinitely adjustable via adjustable gas spring support and optional height adjustment is also available. The memory tilt option allows the steering column to be released to the most vertical position to allow the operator to get off the truck easily. When returning to the cab, the operator simply pulls the steer column back to the pre-set position.
